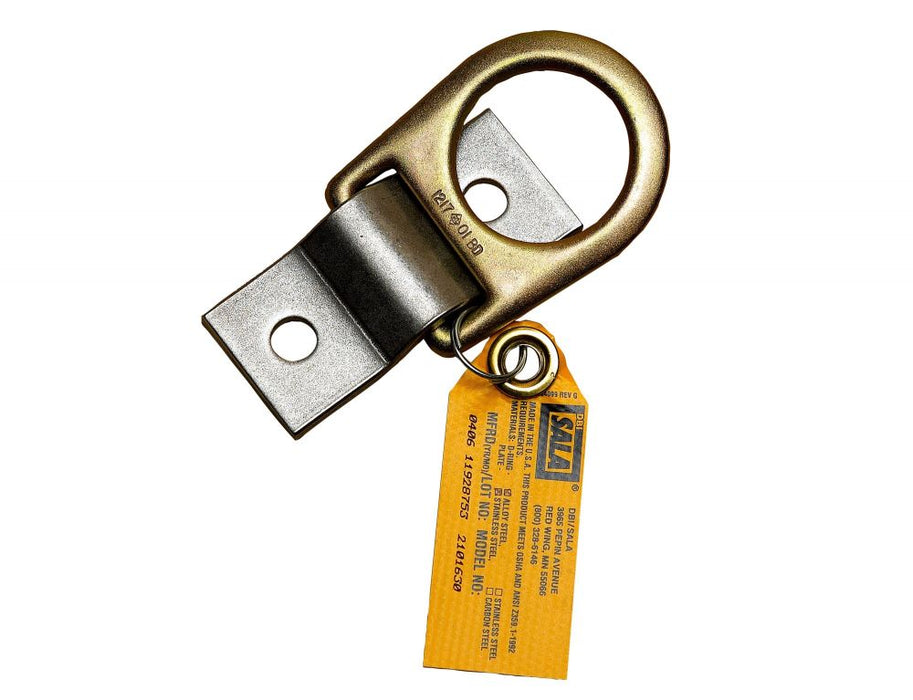

3M DBI-SALA 2101630 D-ring with Anchorage Plate

D-ring anchorage plate with zinc plated steel D-ring and 304 stainless steel plate.

Our anchorage connectors are built from top-quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all-purpose, steel, concrete, roof, or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Features

• Bolt or weld to structure for fall arrest anchor point
• Compact 6.35 x 50 x 115 mm 304 stainless steel plate
• Pre-drilled 14 mm holes
• Zinc-plated steel D-ring for compatible tie-off point
• High strength steel construction
• Extremely rugged and corrosion resistant

Specifications

Anchor Install Type: Permanent
Attachment Type: Bolt/Weld
Connected Safety ID Equipped: No
Install Type: Permanent
Material: Zinc Plated Steel
Product Color: Silver, Yellow Zinc
Product Type: D-ring with Anchorage Plate
Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
Specifications Met: OSHA 1910.140, OSHA 1926.502
Weight (Imperial): 1.2 lb.
Weight Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Weight Capacity (Imperial): 420 lb.
Weight Capacity (Metric): 190 kg
