FLIR T540 24 Thermal Cameras with 24 Degree Lens, 30Hz

by Flir
Original price $16,439.00 - Original price $16,439.00
Original price
$16,439.00 - $16,439.00
Current price $16,439.00

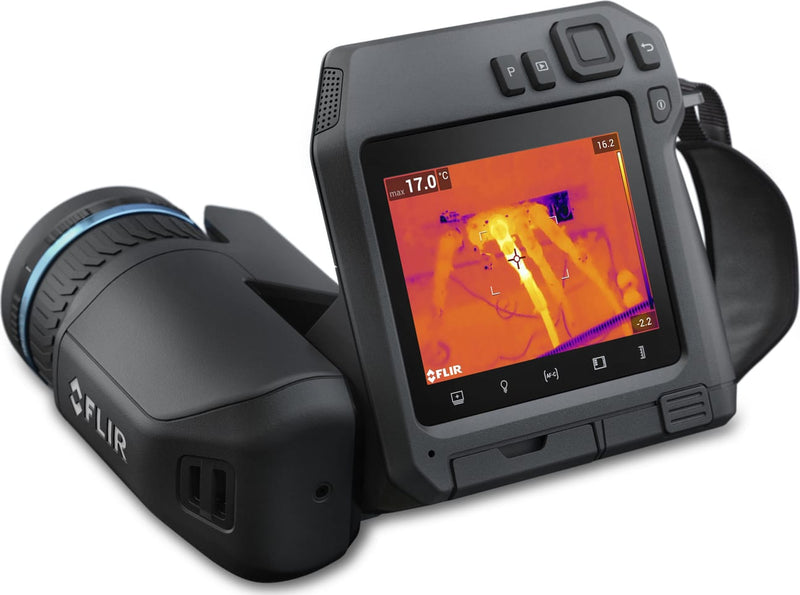

FLIR T540 24 Thermal Cameras with 24 Degree Lens, 30Hz

FLIR T540 w/24 Degree Lens, 464x348, -20 Degree C to 1500 Degree C and FLIR Thermal Studio, 30Hz

Diagnose potential faults in industrial, electrical, and mechanical systems, or discover temperature anomalies in R&D testing with the 464 × 348 resolution FLIR T540. This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus, making it the perfect non-contact diagnostic tool for condition monitoring and research applications. Streamline electrical/mechanical surveys, troubleshooting, and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro (Route Creator plugin required) so users can record temperature data and imagery in a logical sequence. The built-in Macro Mode allows R&D users to quickly switch from wide angle to close-up analysis without changing the lens. Or pair the T540 with a FLIR FlexView™ dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning. When coupled with Research Studio software, the T540 helps engineers assess unexpected hot spots and find potential design flaws.

The purchase of a T540 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.


Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

The T540's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.


IR Resolution: 464 × 348 pixels
Thermal Sensitivity/NETD: <40 mK, 24° @ 30°C (86°F)
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Digital Camera: 5 MP, with built-in LED photo/video lamp
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media: Removable SD card

Camera software update: Using USB cable or SD card
Color: Black
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Type and Pitch: Uncooled microbolometer, 17 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Camera FOV: 53° × 41°
Digital Zoom: 1–6× continuous
Field of View: 24° × 18°
f-number: 1.3, 24°
Focal Length: 17 mm (0.67 in.), 24°
Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
Frame Rate [Full Window]: 30 Hz
Gallery: Yes
Image Frequency: 30 Hz
IR Resolution: 464 × 348 pixels
Laser Alignment: Position is automatically displayed on the infrared image
Lens: 24°
Lens Identification: Automatic
Minimum Focus Distance: 0.15 m (0.49 ft.), 24°, Macro mode 71 µm as option to 24°
Minimum Focus Distance with MSX: 0.5 m (1.64 ft.), 24°
NETD: <40 mK
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Resizable and movable
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming Over UVC
Resolution: 464 × 348 pixels (VGA)
Spatial resolution (IFOV): 0.90 mrad/pixel, 24°
Spectral Range: 7.5 - 14 µm
Thermal Sensitivity/NETD: <40 mK, 24° @ 30°C (86°F)
UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Tools
Video Lamp: Built-in LED light
Viewfinder: No
Visual Image: Yes
Visual Video Recording: H.264 to memory card
Visual Video Streaming: Yes

Accuracy: ±2°C (±3.6°F) or ±2% of reading
Automatic hot & cold detection: Automatic maximum/minimum markers within area
Color Alarm (Isotherm): •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation
Difference Temperature: Yes
Emissivity Correction: Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement Corrections: Yes
Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets: •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2
Object Temperature Range: -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) There are no optional ranges
Reference Temperature: Yes

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Display Technology: IPS
Languages: 21
Text: Predefined list or touchscreen keyboard
Touch Screen: Optically bonded PCAP
Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type: Li-ion battery, charged in camera or on separate charger
Battery voltage: 3.6 V
Battery weight: 195 g (6.89 oz.)
Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature: 0°C to 45°C (32°F to 113°F)
External Power Operation: AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
Power Management: Automatic shut-down and sleep mode

EMC: •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission)
Humidity (Operating and Storage): IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
Radio Spectrum: •ETSI EN 300 228 •FCC Part 15.249 •RSS-247 Issue 2
Safety: EN/UL/CSA/PSE 60950-1
Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
Tripod Mounting: UNC 1/4"-20

Compatible with FLIR software: FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Housing material: PCABS with TPE, magnesium
Laser Pointer: Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
Packaging: Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Packaging Size: 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
Size (L x W x H) Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
