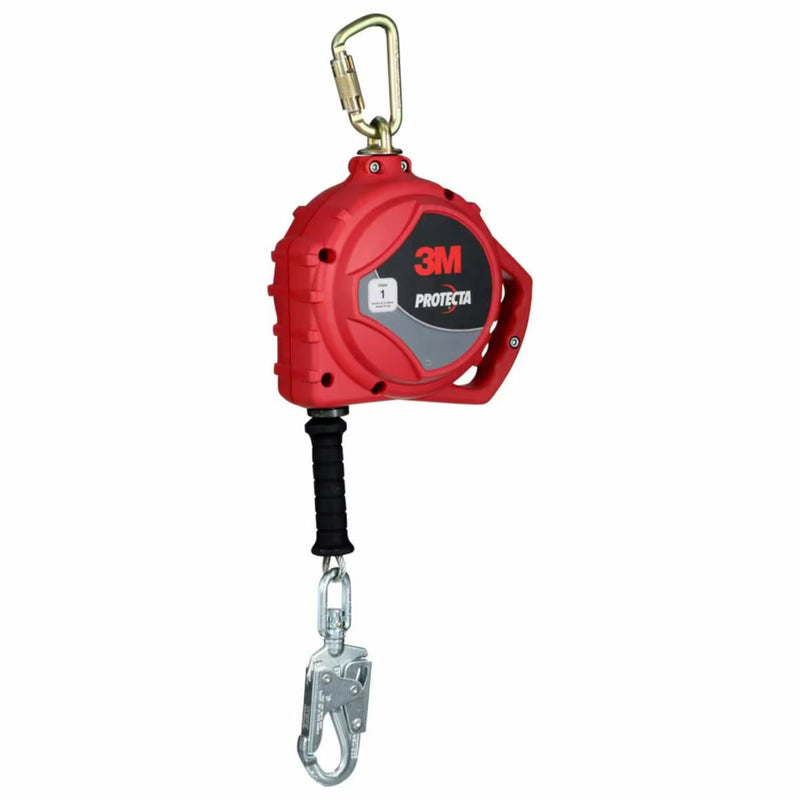

3M Protecta 3590034 Self-Retracting Lifeline

The 3M Protecta Self-Retracting Lifeline (SRL) is durable yet lightweight and built to last while providing an economical fall protection solution without compromising performance or safety. The 3M™ Protecta Self-Retracting Lifeline is available in multiple lifeline lengths and materials featuring a design to help ensure longevity. The 3M Protecta Self-Retracting Lifeline is designed with the worker in mind, featuring a stackable housing design, with web or steel cable lifeline and a built-in swiveling anchorage point for added comfort and ease of use. 3M Protecta Self-Retracting Lifelines are available in SRL, personal SRL, Leading Edge SRL, and Retrieval SRL configurations.

The 3M Protecta Self-Retracting Lifeline (SRL) extends and retracts with the user as they perform their work task. Should a fall occur, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user to safe levels. In addition, tension is always kept on the lifeline, which helps reduce dragging, snagging, trips, and falls. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or for connection directly to harness, there are several models to choose from to suit a variety of applications. 3M™ Protecta® Self-Retracting Lifeline is equipped with an integrated carrying handle to assist in transporting the SRL to job sites.

Features

• Swiveling anchorage connector loop and carabiner

• Aluminum or thermoplastic housing design

• Self-locking snap hook on lifeline

• Compact, lightweight design

• Cable lengths of 20 ft (6 m) or greater feature stackable housing design

• Quick activating speed-sensing locking system

• Features impact-indicating external energy absorber (for models with external shock pack)

• Corrosion resistant components

• Available in multiple configurations, lifeline lengths, and material types

• Emergency retrieval system available on some models

• Reliable fall arrest energy dissipation system

Specifications

ANSI Class Level: Class 1, Class 2

Anchor Connection Type: Carabiner

Anchor Hook Material: Zinc Plated Steel

Anchor Hook Material: Zinc Plated Steel

Average Arrest Force (Imperial): 1125 lbf (OSHA 130 lb - 310 lb), 1350 lbf (ANSI 130 lb - 310 lb)

Average Arrest Force (Metric): 5 kN (OSHA 130 lb - 310 lb), 6 kN (ANSI 130 lb - 310 lb)

Harness Connection Hook Material: Zinc Plated Steel

Harness Connection Type: Single Pin Connector

Housing Material: Aluminum, Nylon Thermoplastic, Thermoplastic

Housing Type: Thermoplastic

Includes: Protecta Modular Connected Shock Pack 1340151

Install Type: Portable & Removable, Removable

Leg Count: Single-Leg, Twin-Leg

Lifeline Connection Type: Rebar Snap Hook, Snap Hook, Swivel Snap Hook

Lifeline Hook Material: Aluminum, Zinc Plated Steel

Lifeline Length (Imperial): 6 ft, 11 ft, 20 ft, 33 ft, 50 ft, 66 ft, 85 ft, 100 ft

Lifeline Length (Metric): 1.83 m, 3.35 m, 6.09 m, 6.1 m, 10.1 m, 15.2 m, 20 m, 20.1 m, 26 m, 30 m

Lifeline Material: Galvanized Cable, Stainless Steel Cable, Web

Maximum Arrest Force (Imperial): 1350 lbf (OSHA 130 lb - 310 lb), 1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb), 1800 lbf (OSHA up to 420 lb)

Maximum Arrest Force (Metric): 6 kN (OSHA 130 lb - 310 lb), 8 kN (ANSI), 8 kN (OSHA 130 lb - 310 lb), 8 kN (OSHA up to 420 lb)

Maximum Number of Users: One

Mounting Type: Block to Anchor Point, Overhead Anchor Point

Product Color: Red

Product Type: Self Retracting Lifeline - Cable, Self Retracting Lifeline - Retrieval, Self Retracting Lifeline - Retrieval with Bracket, Self Retracting Lifeline - Web, Twin-Leg Self Retracting Lifeline - Web

Recommended Application: Assembly, Blasting, Cleaning, Climbing, Confined Space, Decking, Demolition, Facility Maintenance, General Industrial, Inspection, Leading Edge, Maintenance, Remediation, Welding

Recommended Industry: Construction, General Industry, General Manufacturing, Industrial, Maintenance, Manufacturing, Military Maintenance, Repair & Operation (MRO), Mining, Oil Gas, Transportation, Utilities, Wind Energy

Specifications Met: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021

Style: Dual Leg, Single Leg

Weight Capacity (Imperial): 310 lb., 420 lb.

Weight Capacity (Metric): 140 kg, 141 kg, 190 kg

Working Length (Imperial): 64 , 82.9 , 96.4

Working Length (Metric): 19.5 , 25.3 , 29.4
