Air Systems International MACK-NFPA3 NFPA Multi Air Command Kit
Air Systems International MACK-NFPA3 NFPA Multi Air Command Kit
The MACK NFPA units have been designed for the air handling requirements of the Fire / Rescue industry operating with NFPA Compliance.

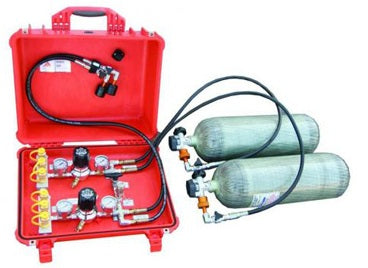

The MACK-NFPA3 air distribution system is specifically designed for confined space fire and rescue operations. The MACK NFPA3 has 2 separate manifold/regulator systems, both of which are supplied with 2 SCBA connecting whips. In case one regulator fails, the rescue operation can be executed with the stand-by regulator system.
In addition to what MACK-NFPA1 has, MACK-NFPA3 features an innovative regulator isolation valve that allows you to use 1 or both of your air sources simultaneously. It also has a high-pressure CGA-347 inlet that allows uninterrupted operation from air cylinders that are truck mounted.
1 or 2 SCBA cylinders may deliver air into the system. The regulator for low-pressure provides 0 to 125 psi for a 4-outlet respirator manifold. The alarm whistle for low-pressure & a 6V DC lamp illuminates the interior of the case and is included as standard equipment.
Applications
- Breathing, Rescue / Fire, Cylinder Filling Operations
- Air Distribution
- NFPA Requirements
- Hazardous Locations
Features
- Dual independent air regulators w/ 3 outlet manifolds
- Dual low-pressure alarms
- Four - 5 foot connect whips
- Regulator isolation valve
- CGA-347 high-pressure inlet
- Confined rescue operations needs
- Two separate systems with two SCBA whips each
- Includes a regulator isolation valve
- Can use one or two air sources at a time
- CGA-347 high-pressure inlet for uninterrupted operations
Benefits
- Augments easy fire/rescue operations in confined spaces
- With the stand by the regulator, you will be able to perform rescue/fire operations even if the main regulator malfunctions
- Regulator isolation valves allow workers to use one or both air sources at a time
