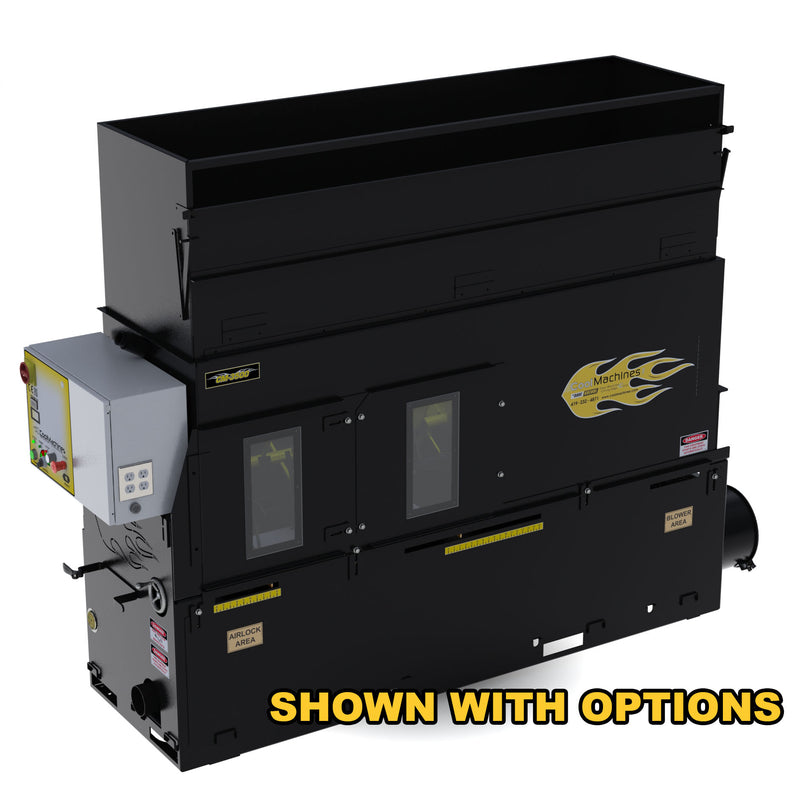

Cool Machines CM3500-5HPXL Standard Insulation Machine

Original price $21,720.00 - Original price $21,720.00
Original price
$21,720.00
$21,720.00 - $21,720.00
Current price $21,720.00

Cool Machines CM3500-HP CM3500-5HPXL Standard Insulation Machine 20" airlock 5 HP positive displacement blower

Our CM-3500XL System with dual metering hoppers, offers streamlined efficiency, application versatility, and components that are both simple to use and easy to repair. This machine provides both the start-up contractor and the high production installers a solution that makes sense.

The complete system design with modest power requirements offers you a CM-3500XL that can be transported in a truck or trailer to the job site and set up to spray or blow in minutes.

This ingeniously designed truck system with self-contained hose reels, heated water tanks, and generator, provides all the necessities for a portable, self-sustaining spray system. The reduced power requirements for this system allow you to use 240 volts, 50 amps job-site power from the grid to conserve generator costs.

Features

  • Large 23 cubic foot hopper capacity for fiber
  • Stainless steel dual slide gate control enables precise control of dry and recycles fiber separately
  • Premium powder coating presents a corrosion resistant long lasting finish
  • Modular construction with see-through access panels provide fast maintenance and troubleshooting
  • Positive feed Slow speed scalping augers prolong component life and enhance operator safety
  • Large 20" X 12" airlock (quick release) is rugged and easy the service component
  • Stainless steel high-speed shredder enables you to maximize fiber production, coverage, and conditioning
  • 2650 inch-pounds high torque reducer drive/motor delivers extra power
  • Hardened sprockets and a #50 chain are positive driving, corrosion-resistant, and super rugged
  • A 150-foot remote cord with hanger allows convenient remote device handling
  • Safety kill switch & manual control provides enhanced operator safety & fast response to hazards along with a pre-alarm buzzer and main disconnect
  • Thermal manual overload protection for all electrical components and motors
  • Deluxe voltmeter provides fast electrical diagnostics
  • Add accessories easily with additional auxiliary outlets

Specifications

Weight: 1375 lbs
Dimensions (L x W x H): 83 x 24 x 53 inches
Hopper Capacity:

  • Dry - 16.5 ft.3
  • Recycle - 7.5 ft.3
  • Total - 24 ft.3 (46 ft.3 w/ Hopper Extension)

Airlock size: 12” dia. x 20” long, 4.0 p.s.i. w/ 4” output tube
Drive motor: 2 HP
Blower:

  • 13 amp. /140 c.f.m. (Blower Box)
  • 5 HP P.D. Blower/ 250 c.f.m.

Power Requirements:

  • 30 amp. 240 volt, single input (Blower Box)
  • 20 amp. 480 volt, single input (PD Blower)
  • 25 amp. 380 volt, single input (PD Blower)
