Testo 890-2 Thermal Imager Kit (640 x 480 FPA)

by Testo
Original price $16,995.75 - Original price $16,995.75
Original price
$16,995.75 - $16,995.75
Current price $16,995.75

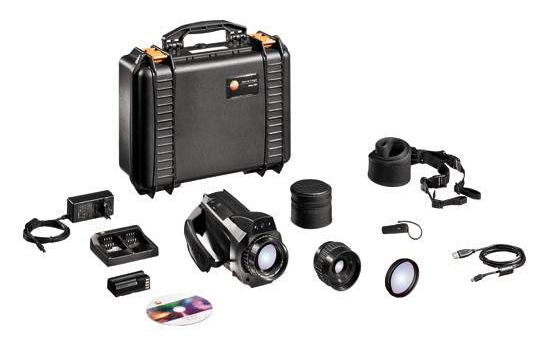

Testo 890-2 Thermal Imager Kit (640 x 480 FPA)

The Testo 890-2 is a feature-rich thermal imaging infrared camera that can be used in a variety of thermographic applications. With an optional 15° telephoto lens and lens protector, the Testo 890-2 thermal imager is the ideal solution for wide-angle and narrow-field thermography.

  • Optional 15° telephoto lens, allows for detailed imaging at a distance
  • Site recognition and database allow you to easily revisit past information by scanning a barcode
  • Radiometric video / sequence imaging capture enables detailed image analysis at timed thermic events
  • Solar mode for detecting invisible defects on solar panel arrays

Industrial, commercial, and research applications are demanding work environments for any thermal imager. The Testo 890-2 uses a rotating touchscreen and swivel grip that can be vital for capturing proper images. Its high sensitivity of 40 mK and 640 x 480 resolution make this imager extremely versatile in any inspection or research application. SuperResolution allows for detailed 1,280 x 960 resolution images, making it easier to pinpoint any problem areas.

The Testo 890-2 has an optional 15° telephoto lens, making distant objects much easier to measure. Using our site recognition barcode and database solution, ensuring that images are properly stored in the correct location has never been easier. Add to all of this radiometric video capture, for detailed frame-by-frame analysis and trends, and the testo 890-2 is in a class by itself.

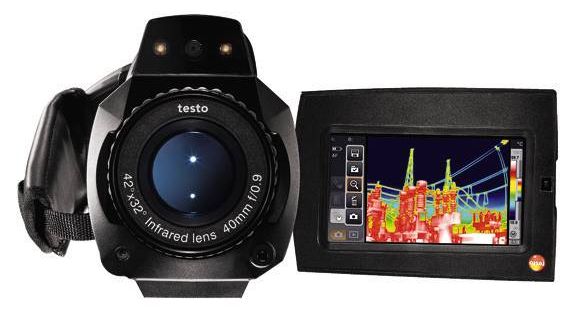

  • Large 4.3" touchscreen
  • Quality resolution of 640 x 480
  • Patented SuperResolution provides 1,280 x 960 resolution images when downloaded to IRSoft

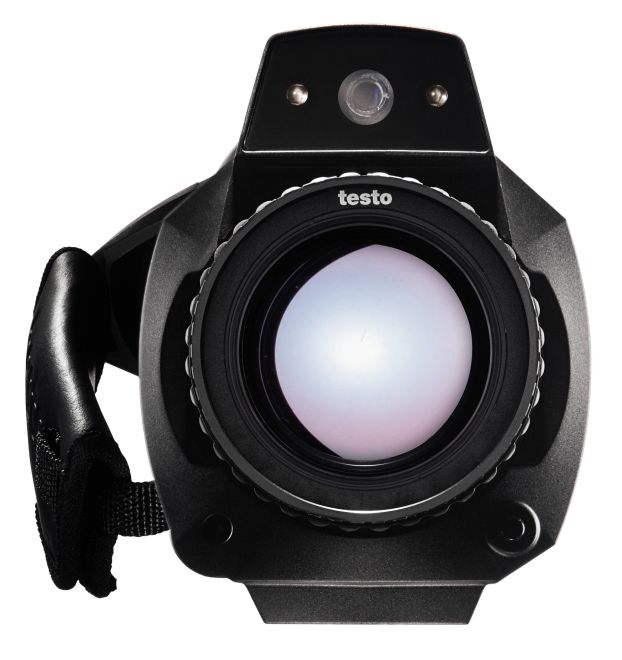

  • 42° wide angle lens included, 15° telephoto lens optional
  • Site recognition and database application
  • High temperature option (2,192 °F)
  • Radiometric video recording
  • Atmospheric corrections
  • Isotherms
  • Bluetooth voice annotation
  • Lens protection glass
  • Customizable reporting software
  • Rotating display and swivel handle allow for ease of use in a variety of applications
  • 2GB SD card included for storage
  • Video output via USB allows for immediate viewing on a computer screen

The testo 890-2 is ideal for the following industrial applications:

  • Electrical and mechanical maintenance
  • Fluid level checks
  • High temperature measurements
  • Reliable quality assurance and production monitoring
  • Power and energy applications
  • Microelectronics
  • Solar panel inspection
  • Thermographic video


Testo 890-2 - Deluxe thermal imager kit brochure

Testo 890-2 - Deluxe thermal imager kit data sheet
