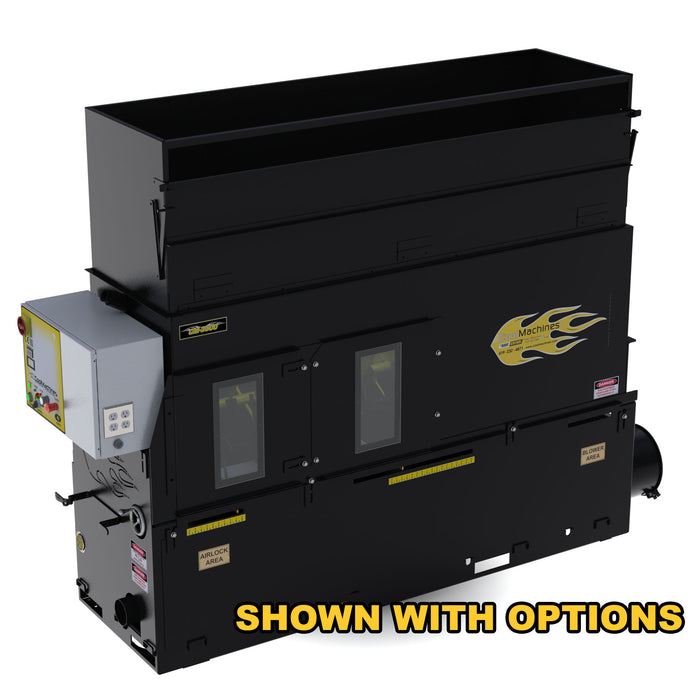

Cool Machines CM-3500XLS CM350014-10HPXL All Fiber Blowing Machine

14" x 24" airlock 10 HP positive displacement blower

Our CM-3500XL System with dual metering hoppers, offers streamlined efficiency, application versatility, and components that are both simple to use and easy to repair. This machine provides both the start-up contractor and the high production installers a solution that makes sense.

The complete system design with modest power requirements offers you a CM-3500XL that can be transported in a truck or trailer to the job site and set up to spray or blow in minutes.

This ingeniously designed truck system with self-contained hose reels, heated water tanks, and generator, provides all the necessities for a portable, self-sustaining spray system. The reduced power requirements for this system allow you to use 240 volts, 50 amps job-site power from the grid to conserve generator costs.

Production Rate:
Material Production Rate

Cellulose 4500 lbs/hr. (*5400 lbs/hr.)
Fiberglass 1800 lbs/hr. (*2400 lbs/hr.)
Rockwool 2200 lbs/hr. (*2700 lbs/hr.)
Wall Spray Cellulose 40 bags/hr.

Features

• Dual 'scalping' augers enhance feed and eliminate bridging in hopper.
• A high-speed turbo-shredder maximizes fiber conditioning and production.
• Dual stainless SlideGate controls for metering recycle and dry fiber.
• Gearbox/Motor for low cost replacement.

Specifications

Weight: 1919 lbs. (10hp),
Dimensions (LxWxH):

• 107" x 29" x 54" (Side of Truck/Trailer)
• 94" x 29" x 54" (Front of Truck/Trailer)
• (75" - 82" Tall w/ Hopper Extension Option)

Hopper Capacity: 37.5 ft.3 (69 ft.3 w/ Hopper Extension)
Airlock Options:

• 12” dia. x 20” long, w/ 4” output tube.
• 12” dia. x 24” long, w/ 4” output tube.

Drive Motor: 3 h.p.
Blower: 10 h.p. - 250 c.f.m./ 6 p.s.i. (PD Blower)
Power Requirements:

• 30 amp., 240/480 volt, 3 phase, single input
• (10 h.p. blower or 5 h.p. PD Blower)
