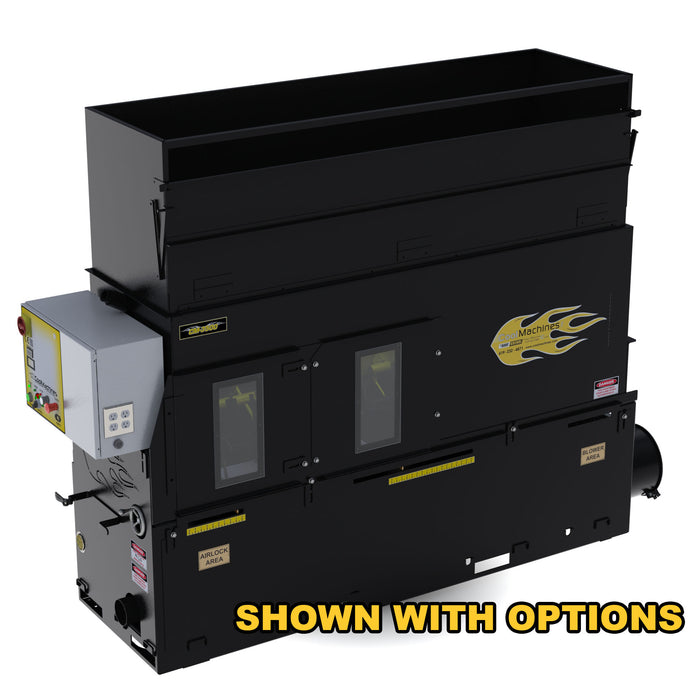

Cool Machines CM-3500XLVH Vac-Hood CM350020-5HPvachoodXL All Fiber Blowing Machine

20" airlock 5 HP pd blr with "Vac hood" recycle up-grade

Vac-Hood Economical with low power requirements. (16 h.p Gas vacuum or larger recommended) Added Gas Vacuum offers a ‘dual’ purpose machine used for wall cavity recycle or can be deployed to a separate job location for attic insulation removal, while CM-3500XL completes other jobs.

Our CM-3500XL System with dual metering hoppers, offers streamlined efficiency, application versatility, and components that are both simple to use and easy to repair. This machine provides both the start-up contractor and the high production installers a solution that makes sense.

The complete system design with modest power requirements, offers you a CM-3500XL that can be transported in a truck or trailer to the job-site, and set-up to spray or blow in minutes.

This ingenuously designed truck system with self contained hose reels, heated water tanks, and generator, provide all the necessities for a portable, self-sustaining spray system. The reduced power requirements for this system allow you to use 240 volt, 50 amps job-site power from the grid to conserve generator costs.

Production Rate:
Material                               Production Rate

Cellulose                             4500 lbs/hr. (*5400 lbs/hr.)
Fiberglass                            1800 lbs/hr. (*2400 lbs/hr.)
Rockwool                            2200 lbs/hr. (*2700 lbs/hr.)
Wall Spray                           Cellulose 40 bags/hr.

Features

  • Innovative Vacuum Hood provides a multi-function machine system.
  • Separate recycle and dry feed-gate control for precise metering of fibers.
  • "Lift & Lock" Extra Large Hopper Partition for high production blowing.

Specifications

Weights: 2250 lbs.(5hp)

Dimensions (LxWxH):

  • 107" x 29" x 75 1/2" (Side of Truck/Trailer)
  • 94" x 29" x 75 1/2" (Front of Truck/Trailer)
  • 75 1/2" - 82" (Tall w/ Hopper Extension Option)

Hopper Capacity:
Dry: 28 ft.3 (49.5 ft.3 w/ Hopper Extension)

Recycle: 9 ft.3

Total: 37 ft.3 (58.5 ft.3 w/ Hopper Extension)

Airlock Options: 12” dia. x 20” long, 4” output tube.

Drive Motor: 3 h.p.

Blower Options:

  • 13 amp. /140 c.f.m. / 6 p.s.i. (4-Blower Box)
  • 5 h.p. - 180 c.f.m./ 6 p.s.i. (PD Blower)
  • 7.5 h.p. - 205 c.f.m./ 8 p.s.i. (PD Blower)
  • 10 h.p. - 250 c.f.m./ 6 p.s.i. (PD Blower)
  • 15 h.p. - 590 c.f.m./ 5 p.s.i. (PD Blower)

Power Requirements:

  • 30-50 amp., 240 volt, single phase, single input (4-blower or 5 h.p. PD Blower)
  • 30 amp., 240/480 volt, 3 phase, single input (10 h.p. blower or 5 h.p. PD Blower)
