FLIR IRW-4C InfraRed Window 4

by Flir
Original price $478.99 - Original price $478.99
Original price
$478.99
$478.99 - $478.99
Current price $478.99

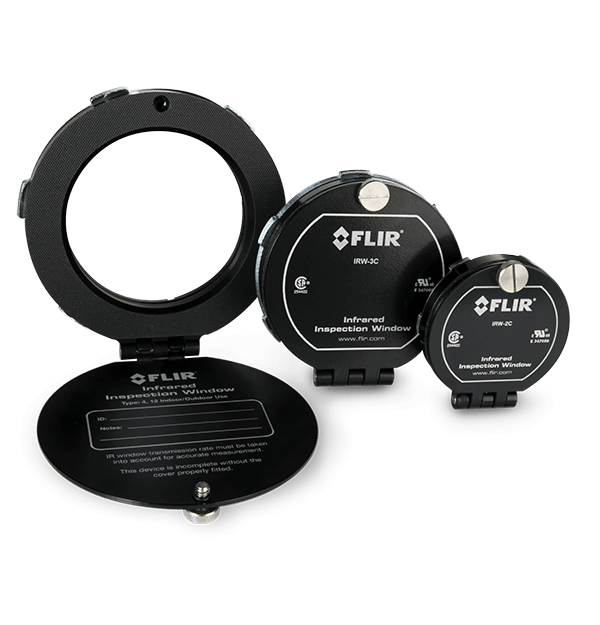

FLIR IRW-4C InfraRed Window 4

FLIR IRW InfraRed Window 4" (O.D. 5.01"/127mm)

FLIR's IR Windows add a barrier between you and energized equipment, protecting you from arc flash accidents. IR windows are easy to install, easy to use, and will help you work with greater confidence. You’ll perform inspections more efficiently and reduce the threat of arc flash injury, all while staying in compliance with NFPA 70E requirements. Choose the anodized aluminum frame, or opt for durable stainless steel to prevent mixed metal issues.

Features

BROADBAND TRANSMISSION
FLIR IR Windows' broadband crystal lenses transmit short, mid, and longwave IR while also allowing illumination to shine through.

PIRMA-LOCK RELIABILITY
FLIR'S tried-and-true PIRma-Lock locknut technology holds the ring in place so there's no need for extra screws.

DURABLE STAINLESS STEEL OPTION
Choose the standard anti-corrosion anodized aluminum frame, or if there are mixed-metal concerns, opt for durable stainless steel.

Specifications

Body Material: Anodized Aluminum
Broadband IR Short Mid & Longwave: x
Maximum Operating Temperature: 500°F/260°C
NEMA Environment Type: Type 4/12 (outdoor/indoor)
Required Hole Diameter (Nominal): 4.5" (114.3mm)
Warranty: Limited Lifetime Warranty Against Manufacturer Defects
Window Thickness: 2mm (0.07")

IMAGING & OPTICAL
Broadband IR Short Mid & Longwave: x
Crystal Insert Diameter: 95mm (3.74")
Greenlee Punch: 742BB
Overall Thickness: 29.25mm (1.15")
Picture-in-Picture & Fusion Image Blending: x
Viewing Aperture Area: 6221mm^2 (9.64in^2)
Viewing Aperture Diameter: 89mm (3.50")
Visible Light Spectrum: x

MEASUREMENT & ANALYSIS
CSA Certification Product Class 3211 07: x
KEMA [IEC 62271-200]: Arc flash test standard: 5kV, 63kA for 30 cycles at 60Hz
Maximum Pullout Strength: 1678 kg (3700 lbs)
TUV [ANSI - IEEE C37202 section A36]: Impact Resistant Cover
TUV [IEC 60068-2-3]: 15-day extreme humidity withstand
TUV [IEC 60068-2-6]: 102 m/s^2 vibration withstand
TUV [IEC 60529]: IP69
UL 50 Environment Type: 4/12
Underwriters Laboratories [UL 50V]: x

ENVIRONMENTAL & CERTIFICATIONS
Maximum Operating Temperature: 500°F/260°C
NEMA Environment Type: Type 4/12 (outdoor/indoor)
Optic Maximum Temperature: 1355.6°C (2474°F)
Voltage Range: Any
Warranty: Limited Lifetime Warranty Against Manufacturer Defects

GENERAL
Body Material: Anodized Aluminum
Overall Height: 136.5mm (5.37")
Overall Width: 127.44mm (5.01")
Packaging Size: 165 x 175 x 40 mm (6.50 x 6.89 x 1.58 in.)
Required Hole Diameter (Nominal): 4.5" (114.3mm)
Window Thickness: 2mm (0.07")

Brochure:

Flir IR Inspection Windows Data Sheet

FLIR IRW-4C Data Sheet

Flir IRW-4C Specification Sheet
