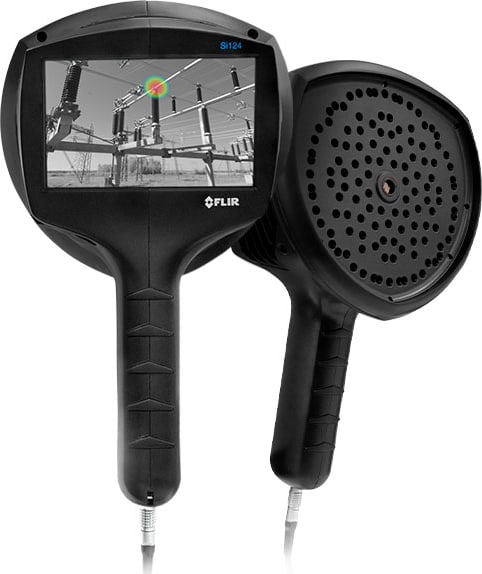

The FLIR Si124 acoustic imaging camera can help you locate pressurized leaks in compressed air systems or detect partial discharge from high-voltage electrical systems. This lightweight, one-handed solution can be used to identify issues up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124 produces a precise acoustic image that visually displays ultrasonic information, even in loud industrial environments. The acoustic image is transposed in real time on top of a digital camera picture, which allows you to accurately pinpoint the source of the sound. The Si124 features a plugin that enables users to import acoustic images to FLIR Thermal Studio suite for offline editing, analysis, and advanced report creation. Field analysis and reporting can also be done using the FLIR Acoustic Camera Viewer cloud service. Through a regular maintenance routine, the FLIR Si124 can help facilities save money on utility bills and delay the expense of installing new compressors.
Available in additional models which include a cordless battery option: the Si124-LD for leak-detection applications, or the Si124-PD for electric utility applications. View the models in the related products section below.
Features
FIND PROBLEMS FASTER
Detect compressed air leaks, partial discharge, and corona up to 10 times faster with sound imaging vs. traditional methods
REDUCE COSTS, IMPROVE RELIABILITY
Minimize excess utility costs, equipment failures, and downtime by ensuring proper air pressure to pneumatic equipment and locating partial discharge or corona precisely
INSPECT EASILY
Classify leak severity and partial discharge type in real time with this lightweight, smart tool that you can operate with one hand
Specifications
Acoustic Measurement: 124 low-noise MEMS microphones, real-time sound visualization
Discharge Classification: • Negative corona • Positive and negative corona • Floating discharge • Surface or internal discharge PRPD pattern provided in FLIR Acoustic Camera Viewer cloud service.
Severity Assessment: Automatic AI-based severity assessment including recommended actions
Distance: from 0.3 m (1.0 ft) up to 130 m (430 ft)
Leak Rate: In typical industrial environment: • >0.032 l/min @ 3 bar from 3 m (9.8 ft) • >0.05 l/min @ 3 bar from 10 m (32.8 ft) Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft)
Wireless Data Transfer: Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
IMAGING & OPTICAL
Camera software update: Automatic over Wi-Fi; USB via computer
Dynamic Range: Low limit: <-15 dB; High limit: >120 dB
Field of view (FOV): 62° × 49°
Frame Rate: Video: 25 fps; Acoustic image: 30 fps
Video Image Resolution: 800 × 480
Zoom: 2x digital zoom
MEASUREMENT & ANALYSIS
Acoustic Measurement: 124 low-noise MEMS microphones, real-time sound visualization
Bandwidth: 2 kHz to 65 kHz, adjustable range MEMS sampling frequency: 130 kHz
Discharge Classification: • Negative corona • Positive and negative corona • Floating discharge • Surface or internal discharge PRPD pattern provided in FLIR Acoustic Camera Viewer cloud service.
Discharge Detection: Automatic detection 50 / 60 Hz
Distance: from 0.3 m (1.0 ft) up to 130 m (430 ft)
Leak Rate: In typical industrial environment: • >0.032 l/min @ 3 bar from 3 m (9.8 ft) • >0.05 l/min @ 3 bar from 10 m (32.8 ft) Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft)
Severity Assessment: Automatic AI-based severity assessment including recommended actions
USER INTERFACE
Display Size: 5 in. 800 × 480
Color: 24 bit RGB
Brightness: 1000 cd/m² (adjustable)
Input Device: Resistive touchscreen
Power On Indicator: LED (red)
POWER
Battery: Li-Ion rechargeable battery pack (RRC 2040):
10.8 V, 3.35 Ah, 36.2 Wh; Usage: more than 2 h (depends on ambient conditions)
Charge time: 2 h; Max output: 12.6 V, 4 A
Battery Charger: Input: 19 to 26 VDC, 2.8 A; Max output: 17.4 VDC, 4.8 A
Internal Battery: Li-Ion 6 Wh; Nominal Input Voltage 12 V Max input: 15 V 2.5 A
ENVIRONMENTAL & CERTIFICATIONS
Operating And Storage Humidity: Recommended 0 to 90%
Operating Temperature Range: –10°C to 50°C (14°F to 122°F)
Storage Temperature Range: –20°C to 70°C ( –4°F to 158°F)
GENERAL
Packaging Type: Cardboard box
Packaging Weight: 4 kg (9 lb)
Size: Camera: 315 × 169 × 160 mm (12.4 × 6.6 × 6.3 in); Battery: 85 mm × 59 mm × 22 mm (3.34 in × 2.31 in × 0.86 in)
Total Weight [Including All Accessories]; 1.25 kg (2.76 lb)
Weight: Camera: 1.08 kg (2.38 lb); Battery: 0.17 kg (0.37 lb)
