FLIR T530 24 Thermal Cameras with 24 Degree Lens, 30Hz

by Flir
Original price $12,119.00 - Original price $12,119.00
Original price
$12,119.00 - $12,119.00
Current price $12,119.00

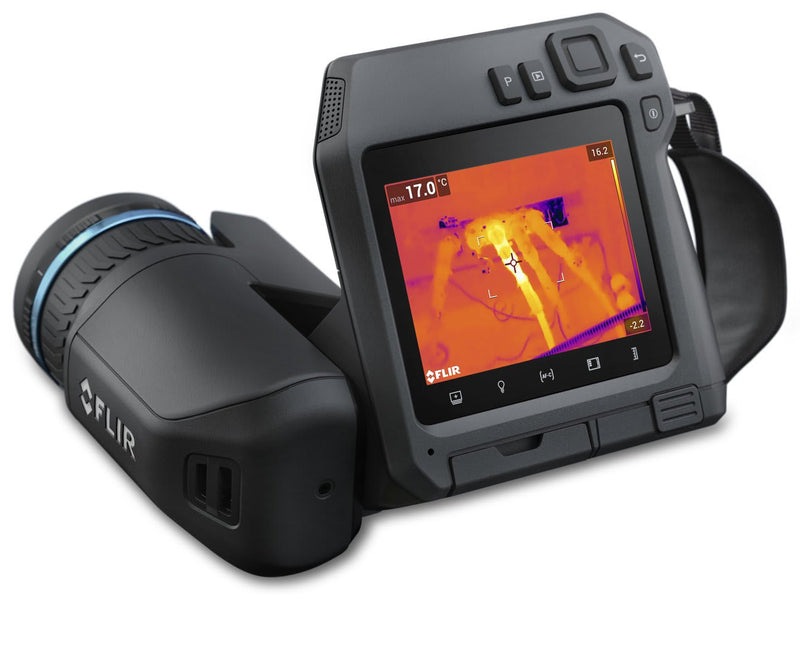

FLIR T530 24 Thermal Cameras with 24 Degree Lens, 30Hz

FLIR T530 w/24 Degree Lens, 320x240, 30Hz, -20 Degree C to 650 Degree C. Now Includes FLIR Thermal Studio Pro (1yr License)

The FLIR T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4" LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Pair the T530 with a FLIR FlexView™ dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens.

The purchase of a T530 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.


Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

The T530's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.


IR Resolution: 320 × 240 (76,800 pixels)
Thermal Sensitivity/NETD: <40 mK, 24° @ 30°C (86°F)
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Digital Camera 5 MP, with built-in LED photo/video lamp
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media: Removable SD card

Camera software update: Using USB cable or SD card
Color: Black
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Type and Pitch: Uncooled microbolometer, 17 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Camera FOV: 53° × 41°
Digital Zoom: 1-4x continuous
Field of View: 24° × 18°
f-number: 1.3, 24°
Focal Length: 17 mm (0.67 in.), 24°
Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
Gallery: Yes
Image Frequency: 30 Hz
IR Resolution: 320 × 240 (76,800 pixels)
Laser Alignment: Position is automatically displayed on the infrared image
Lens Identification: Automatic
Minimum Focus Distance: 0.15 m (0.49 ft.), 24°, Macro mode 103 µm as option to 24°
Minimum Focus Distance with MSX: 0.5 m (1.64 ft.), 24°
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Resizable and movable
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming: Over UVC
Resolution: 320 × 240 pixels (VGA)
Spatial resolution (IFOV): 1.31 mrad/pixel, 24°
Spectral Range: 7.5 - 14.0 µm
Thermal Sensitivity/NETD: <40 mK, 24° @ 30°C (86°F)
UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Thermal Studio
Video Lamp: Built-in LED light
Viewfinder: No
Visual Image: Yes
Visual Video Recording: H.264 to memory card
Visual Video Streaming: Yes

Accuracy: ±2°C (±3.6°F) or ±2% of reading
Automatic hot & cold detection: Automatic maximum/minimum markers within area
Color Alarm (Isotherm): •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation
Difference Temperature: Yes
Emissivity Correction: Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement Corrections: Yes
Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets: •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2
Object Temperature Range: -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) Optional Calibration: 300°C to 1200°C (572°F to 2192°F)
Reference Temperature: Yes

Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Display Technology: IPS
Languages: 21
Text: Predefined list or touchscreen keyboard
Touch Screen: Optically bonded PCAP
Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type: Li-ion battery, charged in camera or on separate charger
Battery voltage: 3.6 V
Battery weight: 195 g (6.89 oz.)
Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature: 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
External Power Operation: AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
Power Management: Automatic shut-down and sleep mode

EMC: •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission)
Humidity (Operating and Storage): IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
Radio Spectrum: •ETSI EN 300 228 •FCC Part 15.249 •RSS-247 Issue 2
Safety: EN/UL/CSA/PSE 60950-1
Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
Tripod Mounting: UNC 1/4"-20

Compatible with FLIR software: FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Housing material PCABS with TPE, magnesium
Laser Pointer: Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
Packaging: Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Packaging Size: 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
Size (L x W x H): •Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
