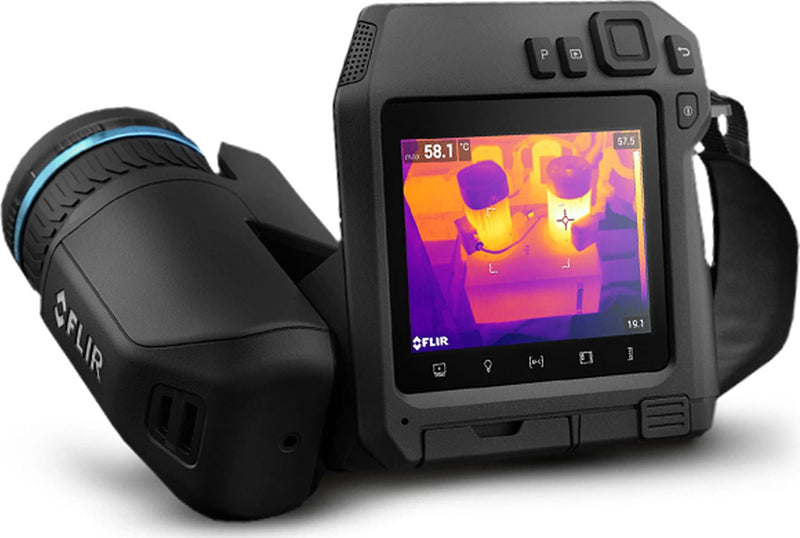

FLIR T560-24 - Professional Thermal Imager with 24° Lens (30 Hz, 640 × 480)
FLIR T560-24 - Professional Thermal Imager with 24° Lens (30 Hz, 640 × 480)
T560 w/24 Degrees Lens, 640x480, -20 Degrees C to 1500 Degrees C and Thermal Studio Pro - 3 Month Subscription + Route Creator Plugin for Thermal Studio Pro - 3 Month Subscription
Troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T560. This 640 × 480 (307,200 pixel) thermal imaging camera has a bright 4" LCD and a 180° rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time. Pair the T560 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. With on-board FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with FLIR Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
The purchase of a T560 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
Features
MAKE CRITICAL DECISIONS QUICKLY
Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.
FLEXIBLE AND ERGONOMIC
The T560's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.
IMPROVE WORKFLOW EFFICIENCIES
Plan inspections in FLIR Thermal Studio Pro and load into a T560 with the FLIR Inspection Route camera option to streamline surveys and better manage critical data. Activate FLIR Ignite for automatic image uploads directly from the camera to the cloud for efficient and secure storage and sharing.
Specifications
Thermal Sensitivity/NETD: <40 mK @ 30°C (86°F)
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Digital Camera: 5 MP, with built-in LED photo/video lamp
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media: Removable SD card
IMAGING & OPTICAL
Camera software update: Using USB cable or SD card
Color: Black
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Resolution: 640 × 480
Detector Type and Pitch: Uncooled microbolometer, 12 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Camera FOV: 53° × 41°
Digital Zoom: 1–8× continuous
Field of View: 24° × 18°
f-number: 1.3
Focal Length: 17 mm (0.67 in)
Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
Frame Rate [Full Window]: 30 Hz
Gallery: Yes
Image Frequency: 30 Hz
Laser Alignment: Position is automatically displayed on the infrared image
Lens 24°
Lens Identification: Automatic
Minimum Focus Distance: 0.15 m (0.49 ft)
Minimum Focus Distance with MSX: 0.5 m (1.64 ft)
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Resizable and movable
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming: Over UVC
Spatial resolution (IFOV): 0. 7 mrad/pixel
Spectral Range: 7.5 - 14 µm
Thermal Sensitivity/NETD: <40 mK @ 30°C (86°F)
UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Tools
Video Lamp: Built-in LED light
Viewfinder: No
Visual Image: Yes
Visual Video Recording: H.264 to memory card
Visual Video Streaming: Yes
MEASUREMENT & ANALYSIS
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Automatic hot & cold detection: Automatic maximum/minimum markers within area
Color Alarm (Isotherm): Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
Difference Temperature: Yes
Emissivity Correction: Yes, variable from 0.01 to 1.0 or selected from materials list
Measurement Corrections: Yes
Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2
Object Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Reference Temperature: Yes
USER INTERFACE
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Display Technology: IPS
Languages: 21
Touch Screen: Optically bonded PCAP
Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
POWER
Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type: Li-ion battery, charged in camera or on separate charger
Battery voltage: 3.6 V
Battery weight: 195 g (6.89 oz)
Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature: 0°C to 45°C (32°F to 113°F)
External Power Operation: AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
Power Management: Automatic shut-down and sleep mode
ENVIRONMENTAL & CERTIFICATIONS
EMC: ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission)
Humidity (Operating and Storage): IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
Radio Spectrum: ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2
Safety: EN/UL/CSA/PSE 60950-1
Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
Tripod Mounting: UNC 1/4"-20
GENERAL
Compatible with FLIR software: FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Housing material: PCABS with TPE, magnesium
Laser Pointer Class: 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance
Packaging: Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Packaging Size: 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
Size (L x W x H): Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)
Weight [battery included]: 1.4 kg (3.1 lb)
