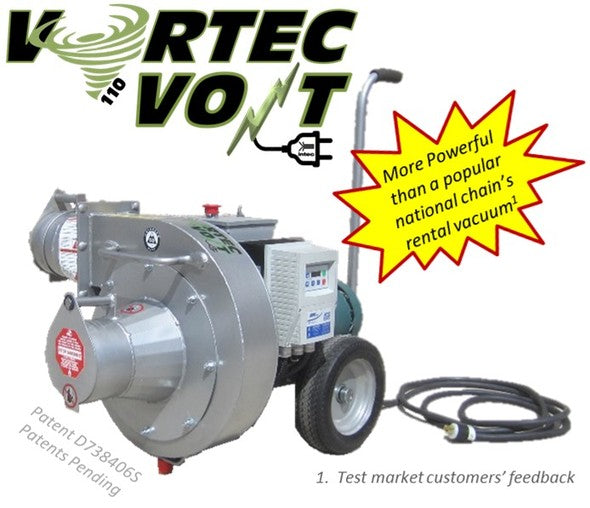

Intec Vortec 74110 VOLT Electric Powered Vacuum

VORTEC VOLT 110 - ELECTRIC
VORTEC VOLT 110. Powered by one 120V - 20amp circuit with VFD to limit amperage intake (prevents tripping of the circuit) and converts input to 3 phase power. 2hp 3 phase motor with high torque, 6" inlet, thick gauge steel with abrasive resistant steel impeller for long life, industry-first break-away coupler, tachometer, run-flat tires, lightweight & highly portable. 1yr warranty.

Intec took our 40 years of electrical motor knowledge & know-how to maximize power with minimal voltage & amperage input to the next level…

The VORTEC VOLT 110is powerful, quiet, exhausts no fumes, and is powered by a single easy-to-find 110V –20amp circuit (note: in all customer uses to date, a single 15amp circuit is all that was required).

Features

• Safety Shields on both inlet and outlets
• Lift handle and grab points simplify portability
• Abrasive Resistant steel impeller & curvature in a shroud -lasts for a very long time
• Variable Frequency Drive programmed to drive powerful motor using only one easy-to-find 120 Volt –20amp circuit. Most users use only one 120V –15amp circuit!
• Easy to use controls with optional GOWIRELESS Long Range Transmission remote
• Small size and clean power simplifies transportation to and into the job site

Specifications

Body: Powder-coated Steel with 10” run-flat wheels.
Weight: 138 lbs.
Impeller: 12” diameter, extra deep for high production
Inlet: 6” standard; 4” optional.
Outlet: 6”.
Motor: 2hp powered by one 110V –20amp circuit.
Fuel: electricity.

Large Fan wheel on independent bearing supported shaft with break-away coupler –prolongs engine life & provides for efficient power transfer from the engine to the impeller. 1-year limited warranty.
