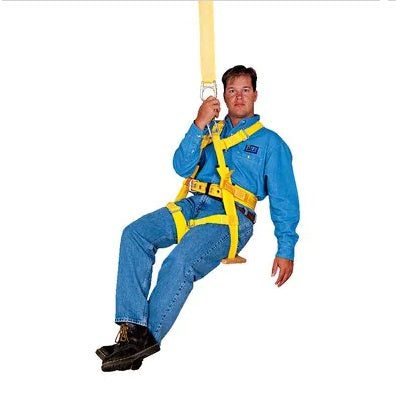

3M DBI-SALA 1001005 Chair with Belt and Support Straps X-Large

At 3M, we know that at-height work presents personnel with unique safety challenges and concerns. To help make some of the most dangerous tasks easier, we created a variety of work seats that are both comfortable to wear and durable. The 3M DBI-SALA Bosun's Chair is appropriate for inspection work, window washing, painting, maintenance, and oil production, along with any other activities that require personnel to be suspended at a specific height and location. All work seats should be used in combination with a full body harness and fall protection system.

Works with you, not against you We designed the 3M DBI-SALA Bosun's Chair to be both comfortable for the wearer and effective as personal fall protection equipment. Strategically-placed padding helps ensure workers can focus on the task at hand. Built tough Protecting your workers and elevating their comfort and safety is a priority for 3M Fall Protection. That’s why we’ve built our work seats with durable materials and corrosion resistant hardware that will stand up to harsh environments. Just one part of your fall protection system Wherever the job takes you, 3M has safety equipment to create a fall protection system that addresses a variety of job demands. These solutions are designed to help keep you and your crew protected so you can perform at peak levels.

Features

• Multiple work seat options available to accommodate different body types
• Built-in suspension D-ring for secure positioning
• Padding at key areas enhance the wearer's comfort
• Designed with materials to help with durability
• Helps meet safety requirements for fall protection applications
• Intended for use with personal protective equipment, including fall arrest systems and other safety supplies
• Recommended for use in multiple industries including (but not limited to) oil and gas, utilities, and construction

Specifications

Belly Pad: No
Belt Type: Waist
Board/Seat Cushion: No
Board/Seat Material: 13-Ply Maple Plywood
Brand: DBI-SALA
Buckle Material: Stainless Steel Grommet
Buckle Type: Tongue Buckle
Case Quantity: 1
Connected Safety ID Equipped: No
Dimensions: 7.75 in x 18 in x 0.77 in (19.7 cm x 45.7 cm x 1.95 cm)
D-ring Material: Forged Steel
D-ring Placement: Back, Double Suspension
Hip Pad: Yes
Max Free Fall Allowed: Zero (no free fall permissible)
Net Weight (Imperial): 8 lb
Net Weight (Metric): 3.6 kg
Overall Length (Imperial): 18 in
Overall Length (Metric): 45.72 cm
Overall Width (Imperial): 8 in
Overall Width (Metric): 20.32 cm
Product Color: Yellow
Product Type: Bosun Chair with Belt and Support Straps
Recommended Industry: Construction, General Industrial, Oil & Gas
Size: X-Large
Specifications Met: OSHA 1910.66, OSHA 1926.502
Webbing Material: Polyester
Weight (Imperial): 8 lb.
Weight (Metric): 3.6 kg
Weight Capacity: 310 lbs. (141 kg)
Weight Capacity (Imperial): 310 lb.
Weight Capacity (Metric): 141 kg

Resources

Workseat Instruction Manual - English (PDF, 589.5KB)
