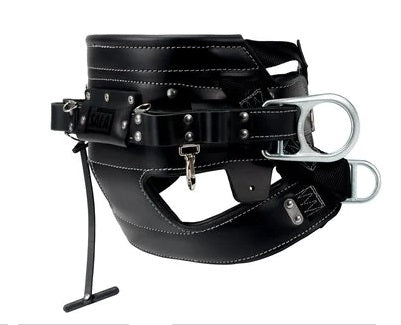

3M DBI-SALA 1001392 4D Leather Lineman Belt Black, D18

4D lineman tongue buckle belt with top-grain leather and contoured seat pad (size D18)

Features

• Built-in contoured comfort and support seat
• Unique design moves center of gravity upward
• Rolled edges add durability and comfort at the hips
• Tongue buckle style body belt
• Gut strap with locking quick connect buckle
• 2 large S-shaped full-floating D-rings at hips
• 2 small D-rings for fall restrict device
• Made with 100% top grain leather from Red Wing, MN
• Built-in tool snaps and rings
• Integral leather tape thong
• Metal ID plate with vinyl label, equipped with 3M Connected Safety ID (CSID)
• Available in sizes D18 through D30

Specifications

Belly Pad: No
Belt Type: Waist
Board/Seat Cushion: No
Brand: DBI-SALA
Buckle Material: Stainless Steel Grommet
Buckle Type: Tongue Buckle
Case Quantity: 1
Connected Safety ID Equipped: Yes
D-ring Material: Zinc Plated Steel
D-ring Placement: Side
Hip Pad: Yes
Material: Leather
Max Free Fall Allowed: 2 ft. (0.60 m)
Product Color: Black
Product Type: 4D Lineman Belt
Recommended: Industry Utilities
Size: D18
Specifications Met: ASTM F887, OSHA 1910.66, OSHA 1926.502
Type: Belt
Webbing Material: Nylon
Weight (Imperial): 6.2 lb.
Weight (Metric): 2.8 kg
Weight Capacity: 310 lbs. (141 kg)
Weight Capacity (Imperial): 310 lb.
Weight Capacity (Metric): 141 kg

Resources

3M DBI-SALA Lineman's Belt (PDF, 2.5MB)
