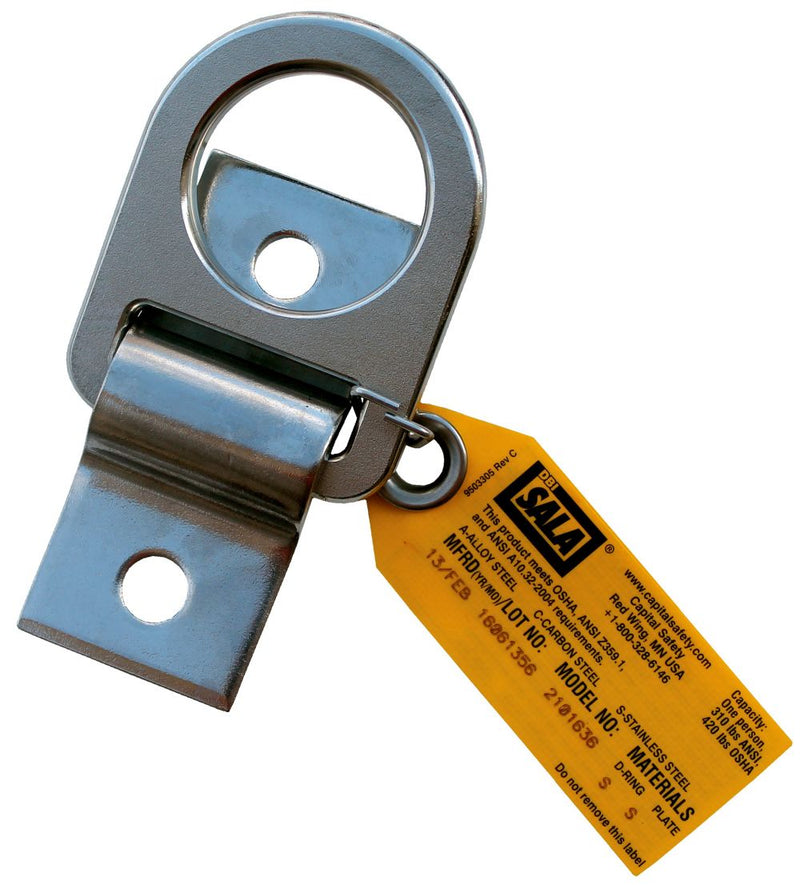

3M DBI-SALA 2101636 D-ring Anchorage Plate

High strength and durability to stand up to the toughest environments
Anchorages are sold by what they connect to (general/all-purpose, steel, concrete, roof, or specialty), whether they are fixed or mobile, and whether they are permanent or portable.

They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Features

• Bolt or weld to structure for fall arrest anchor point
• Compact 1/4" x 2" x 4-1/2" (6 x 51 x 114 mm) 304 stainless steel plate
• Pre-drilled 1/2" (12.7mm) holes
• 304 Stainless steel D-ring for compatible tie-off point

Specifications

Anchor Install Type: Permanent
Attachment Type: Bolt/Weld
Connected Safety ID Equipped: No
Dimensions: 0.25x2.00x4.50in
Install Type: Permanent
Material: Zinc Plated Steel
Product Color: Silver
Product Type: D-ring Anchorage Plate
Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
Specifications Met: OSHA 1910.140, OSHA 1926.502
Weight (Imperial): 1.2 lb.
Weight Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Weight Capacity (Imperial): 420 lb.
Weight Capacity (Metric): 190 kg
