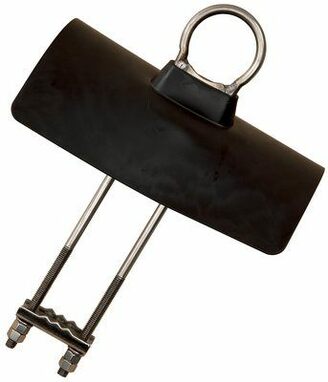

3M DBI-SALA 2103671 Permanent Roof Anchor with Flashing and Cap

Permanent U-bolt roof anchor with integral D-ring, flashing, and cap, fits 2x10 to 2x12 roof member.

Our anchorage connectors are built from top-quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all-purpose, steel, concrete, roof, or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Features

• Installs to 2x10 to 2x12 wood-frame structures
• Fast and easy bolt and clamp installation
• Permanent installation type
• Integral stainless steel D-ring tie-off point
• Flashing included for complete leakage protection
• Weathertight D-ring cap
• Extremely corrosion-resistant stainless steel construction
• Extremely compact and lightweight design

Specifications

Anchor Install Type: Permanent
Attachment Type: Bolt/Clamp
Connected Safety ID Equipped: No
Dimensions: 3.00x0.40x17.80in
Install Type: Permanent
Material: Zinc Plated Steel
Product Color: Silver
Product Type: Permanent Roof Anchor with Flashing and Cap
Recommended Industry: Construction, General Industrial, Mining, Oil & Gas
Specifications Met: OSHA 1910.140, OSHA 1926.502
Weight (Imperial): 2.2 lb.
Weight Capacity: 310 lbs. (141 kg)
Weight Capacity (Imperial): 310 lb.
Weight Capacity (Metric): 141 kg
