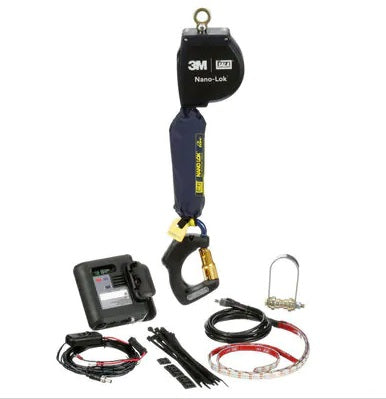

3M DBI-SALA 3100273 Nano-Lok Connected Extended Length Order Picker Self-Retracting Lifeline Kit Web, 11 ft

The 3M DBI-SALA Nano-Lok Connected Order Picker SRL is a smart connected fall protection system that can sense a worker’s presence on an order picker and detects their tie off status. The system provides workers and site safety managers with real-time visual and audible feedback based on tie-off status while on an order picker. An innovative and connected solution designed to promote safety & situational awareness for workers through: Multi-Sensor Technology which detects a workers presence on an order picker as well as their tie-off status to their harness dorsal d-ring and gate closure and lock detection. The system also incorporates Bluetooth™ communication to relay tie-off status between the hook and overhead box which enables the alert system to provide real-time tie-off status to workers, peers, and site safety. The alert system incorporates optimally placed visual LED lights on the vehicle in addition to an audible alert from the overhead box to remind the worker when they are not tied-off.

3M DBI-SALA Nano-Lok Extended Length Self Retracting Lifelines are rugged, yet lightweight and carefully engineered devices you can count on for comfortable and efficient fall protection. Stainless steel components, an anti-ratcheting brake system and a semi sealed design help provide the user with a system built to last. This SRL is designed so that the lifeline will extend as the user moves away and retract automatically enabling the user to move about within a recommended working area at normal speeds. Should a fall occur, a speed sensing brake system activates stopping the fall and reducing the forces imposed on the user.

Features

• Fall Protection system provides audible and visual alert of worker tie off status
• Detects associate's presence as they move on and off order picker platform
• Works with all metallic OSHA rated dorsal D-Ring's
• Non disruptive and encourages safe connection and situational awareness
• Lightweight aluminum snap hook with plastic cover
• A modular system designed for replacement parts that can be ordered separately and installed easily
• 11’ dynamic ™ fiber and polyester web lifeline

Specifications

Anchor Connection Type: Cab-mount Bracket
Anchor Hook Material: Aluminum
Brand: DBI-SALA
Connected Safety ID Equipped: Yes
Harness Connection Type: Connected Carabineer
Housing Material: Nylon Thermoplastic
Install Type: Reusable or Permanent
Lifeline Length (Imperial): 11 ft
Lifeline Length (Metric): 3.35 m
Lifeline Material: Dynamic Webbing
Overall Length (Imperial): 11 ft
Overall Length (Metric): 3.35 m
Product Color: Blue
Product Type: Connected Order Picker Self Retracting Lifeline System
Recommended Application: Powered Industrial Truck Order Picking
Recommended Industry: General Industry, Warehousing
Specifications Met: ANSI Z359.14 Class B, OSHA 1910.140, OSHA 1926.502
Weight Capacity (Imperial): 310 lb.
Weight Capacity (Metric): 140.61 kg

Resources

Instructions

3M™ DBI-SALA® Nano-Lok Connected Order Picker SRD System User Instructions (PDF, 4.4MB)
