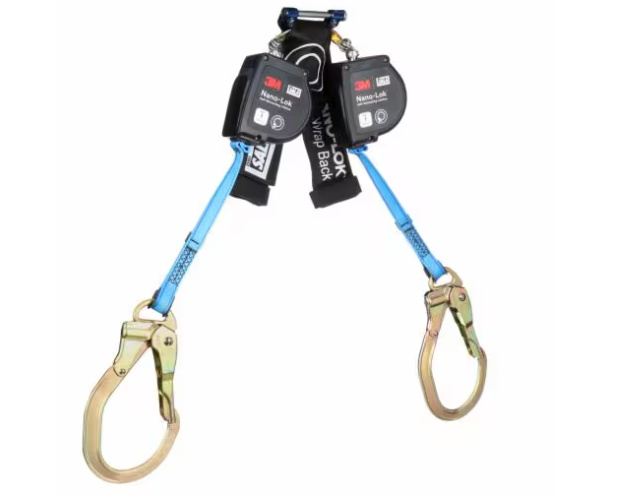

3M DBI SALA 3M DBI-SALA 3100618 Nano-Lok Self-Retracting Lifeline with Quick Connect, Self Retracting Lifeline

3M DBI-SALA 3100618 Nano-Lok Self-Retracting Lifeline with Quick Connect

by 3M DBI SALA
$648.68 - $648.68
$648.68
$648.68 - $648.68
$648.68

3M DBI-SALA 3100618 Nano-Lok Self-Retracting Lifeline with Quick Connect, Web, Wrap Back, 8 ft.

Nano Lok Wrap Back SRL designed to function as both a fall protection device and tie off adapter. This versatile solution is specifically designed to be tied off to multiple types of structures along its own lifeline component providing a secure connection to structural steel, rebar walls or other structures that can properly support fall arrest forces.

Features

  • Quick activating speed sensing brake systems
  • Built-in pin-style connector for direct attachment to harness
  • Wrap back design with specialized Dyneema web lifeline
  • Durable thermoplastic housing

Specifications

Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA up to 420 lb), 1125 lbf (OSHA 130 lb - 310 lb)

Average Arrest Force (Metric):Ā 5 kN (ANSI)

Brands:Ā 3M

Connected Safety ID Equipped:Ā Yes

Harness Connection Hook Material:Ā Stainless Steel

Harness Connection Type:Ā Single Pin Connector

Housing Material: Nylon Thermoplastic

Housing Type: Thermoplastic

Install Type:Ā Portable & Removable

Leg Count:Ā Twin-Leg

Lifeline Connection Type:Ā Tie-back Snap Hook

Lifeline Hook Material:Ā Zinc Plated Steel

Lifeline Length (Imperial):Ā 8 ft

Lifeline Length (Metric):Ā 2.4 m

Lifeline Material:Ā Web

Maximum Arrest Force (Imperial): 1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb)

Maximum Arrest Force (Metric):Ā 8 kN (ANSI), 8 kN (OSHA up to 420 lb), 8 kN (OSHA 130 lb - 310 lb)

Maximum Number of Users:Ā One

Mounting Type:Ā Direct to Harness Back

Net Weight (Imperial):Ā 3.5 lb

Net Weight (Metric):Ā 1.59 kg

Product Color:Ā Black

Product Series:Ā Nano-Lok

Product Type:Ā Wrap Back Self-Retracting Lifeline

Recommended Application:Ā Ladder Climbing, Inspection, Climbing, Maintenance, Decking, Demolition, Remediation

Recommended Industry: Metal Production & Fabrication, Mining, Oil & Gas, Renewable, Transportation, Utilities, Warehousing, Utility, Wind Energy, Military Maintenance, Repair & Operation (MRO), Maintenance, Manufacturing, Metal Fabrication, Industrial, Automotive, Construction, General Industrial, General Industry, General Manufacturing

Specifications Met:Ā ANSI Class Level 1, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502

Style:Ā Dual Leg

Weight Capacity (Imperial):Ā 420 lb

Weight Capacity (Metric):Ā 190 kg


Dimensions and Classifications

Overall Length (Imperial):Ā 8 ft

Overall Length (Metric):Ā 2.4 m
