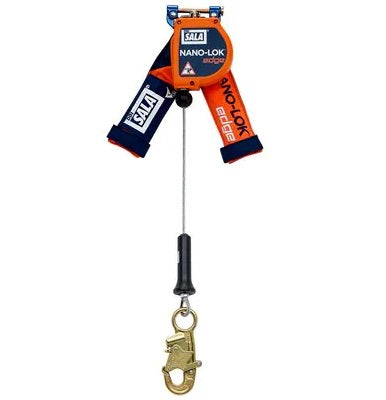

3M DBI-SALA 3500210 Nano-Lok edge Quick Connect Self Retracting Lifeline - Cable Orange, 8 ft. (2.4 m)

8 ft. (2.4m) lifeline with 3/16" (5mm) galvanized steel wire rope and snap hook, quick connector for harness mounting.

Nano Lok edge is specifically designed for foot level tie off and sharp edge applications often found in construction. It is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are numerous models to choose from to suit almost any application. Nano Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

Features

• Designed for foot-level tie-off and sharp edge applications
• Built-in connector for single-leg SRL direct attachment to harness
• 8 ft. (2.4m) lifeline with 3/16" (5mm) galvanized steel cable lifeline
• Self locking snap hook on end of lifeline
• Extremely compact, lightweight design
• Tough and impact resistant thermoplastic housing
• Swiveling anchorage loop
• Quick activating speed sensing brake systems
• Integrated backpack style energy absorber
• Wide variety of configurations available
• Equipped with 3M™ Connected Safety ID (CSID)

Specifications

Anchor Connection Type: Snap Hook
Brand: DBI-SALA
Case Quantity: 1
Connected Safety ID Equipped: Yes
Harness Connection Type: Built-in Connector
Housing Material: Nylon Thermoplastic
Lifeline Hook Material: Zinc Plated Steel
Lifeline Length (Imperial): 8 ft
Lifeline Length (Metric): 2.4 m
Lifeline Material: Galvanized Cable
Material: Galvanized Cable
Mounting Type: Direct to Harness Back
Overall Length (Imperial): 8 ft
Product Color: Orange
Product Type: Edge Quick Connect Self Retracting Lifeline - Cable
Recommended Industry: Construction, General Industrial, Oil & Gas
Specifications Met: ANSI A10.32, ANSI Z359.14, OSHA 1910.66, OSHA 1926.502
Weight (Imperial): 4 lb.
Weight Capacity: 310 lbs. (141 kg)
Weight Capacity (Imperial): 420 lb.
Weight Capacity (Metric): 190 kg

Resources

Instructions

IFU_5903543_Nano-Lok_Edge_ANSI (PDF, 10.3MB)

3M™ DBI-SALA® Nano-Lok™ Edge Shock Pack Replacement Instructions (PDF, 5.3MB)
