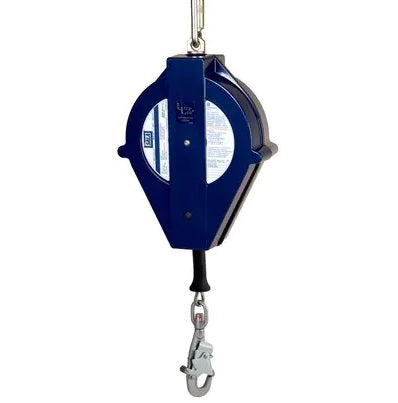

3M DBI-SALA 3504487 Ultra-Lok Heavy-Duty Self Retracting Lifeline, Cable 85 ft. (26m)

85 ft. (26m) of 3/16" (5mm) stainless steel wire rope with swivel snap hook.

Ultra Lok self retracting lifelines (SRL’s) are rugged, yet extremely lightweight and superbly engineered devices you can count on for safety, efficiency and comfort. Stainless steel components, an anti ratcheting brake system and a semi sealed design provide the user with a system built to last. Our SRLs are backed by decades of proven field service for absolute confidence, safety and reliability. An SRL’s lifeline will extend as the user moves away, and retract automatically enabling the user to move about within a recommended working area at normal speeds. Should a fall occur, a speed sensing brake system will activate stopping the fall and reducing the forces imposed on the user to safe levels.

Features

• Durable and lightweight cast aluminum housing
• Semi-sealed design
• 85 ft. (26m) 3/16" (5mm) stainless steel cable lifeline
• Stainless steel dynamic components
• Internal energy absorption system
• Anti-ratcheting twin disk brake system
• Constant moving brake system pawls
• Swiveling anchorage point
• Stainless steel swiveling snap hook with impact indicator
• Reserve lifeline system
• Ergonomic cable handle equipped with 3M Connected Safety ID (CSID)

Specifications

Anchor Connection Type: Swivel Snap Hook
Brand: DBI-SALA
Case Quantity: 1
Connected Safety ID Equipped: Yes
Harness Connection Type: Snap Hook
Lifeline Hook Material: Stainless Steel
Lifeline Length (Imperial): 85 ft
Lifeline Length (Metric): 25.9 m
Lifeline Material: Stainless Steel Cable
Material Stainless Steel: Cable
Mounting Type: Block to Anchor Point
Overall Length (Imperial): 85 ft
Product Type: Heavy-Duty Self Retracting Lifeline - Cable
Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
Specifications Met: ANSI A10.32, ANSI Z359.1, ANSI Z359.14, OSHA 1910.66, OSHA 1926.502
Weight (Imperial): 33 lb.
Weight Capacity: 310 lbs. (141 kg)
Weight Capacity (Imperial): 310 lb.
Weight Capacity (Metric): 141 kg

Resources

Instructions

ANSI/ASSE Z359.14-2012 Self Retracting Lifeline Supplement (PDF, 151.6KB)
