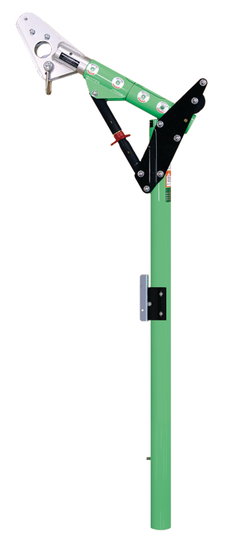

3M DBI-SALA 8518383 Confined Space One-Piece Adjustable Offset Davit Mast

One-piece 11-1/2 in. to 27-1/2 in. (29.2 to 69.8 cm) adjustable offset davit mast with 78 in. to 88 in. (198.1 to 223.5 cm) anchor point height.

Variable offset davits are designed for use where multiple offset masts are required. The variable offset masts may be equipped with front-mounted and/or back mounted winches or SRLs and feature an anchor point rated up to 5,000 lbs. (22kN) depending on pin position. For applications with overhead clearance restrictions, the adjustable-height of the variable offset masts can eliminate the need for custom length masts and mast extensions. Quick connect/release pins allow for fast and easy set-up, dismantle and transport. When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA for the type of high-quality, rugged systems that will ensure top performance when it is needed the most.

Specifications

Connected Safety ID Equipped: No
Install Type: Portable
Net Weight (Imperial): 45 lb
Net Weight (Metric): 20.4 kg
Overall Height (Imperial): 101.5 in
Overall Height (Metric): 257.81 cm
Product Color: Green, Silver
Product Type: Adjustable Offset Davit Mast
Recommended: Industry Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities
Specifications: Met ANSI Z359.1, OSHA 1926.502
Weight (Imperial): 45 lb.
Weight Capacity: 450 lbs. (204 kg)
Weight Capacity (Imperial): 450 lb.
Weight Capacity (Metric): 204 kg

Features

• One-piece adjustable offset davit mast
• Integrated 5,000 lb. (22 kN) mast anchorage point
• Fall arrest rated in all davit offset mast positions
• The telescoping reach of 11-1/2 in. to 27-1/2 in. (29.2 to 69.8 cm)
• The adjustable vertical height of 198.1 to 223.5cm
• The telescoping reach of 29.2 to 69.8cm
• Integral secondary fall arrest anchorage point
• Quick mount winch/SRL bracket
• Configure with front and/or back mounted winch/SRL
• Detent and knob style adjustment
• Lightweight, corrosion-resistant aluminum construction
• Use with confined space portable and permanent bases
• Lightweight, corrosion-resistant aluminum construction
• Use with Advanced portable and permanent bases
