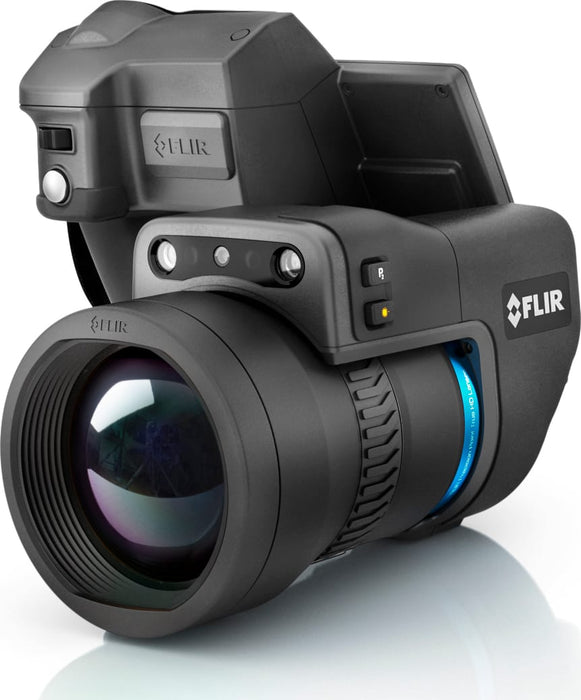

FLIR T1010-28 - HD Thermal Imager w/ 28 Degree Lens
FLIR T1010-28 - HD Thermal Imager w/ 28 Degree Lens
T1010 IR Camera 1024 x 768 Resolution/30Hz w/28 Degrees Lens with Thermal Studio Pro - 3 Month Subscription + Route Creator Plugin for Thermal Studio Pro - 3 Month Subscription
The FLIR T1010 is your entry to the world of outstanding thermal imaging performance. With up to 3.1 MP resolution (UltraMax), superior thermal sensitivity, and FLIR's most advanced user interface, the T1010 is designed to streamline your workday, and make you the hero. The FLIR T1010 comes with on-board Inspection Route mode so you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). The purchase of a T1010 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
Features
HD RESOLUTION, WIDE TEMPERATURE RANGE
The T1010 records 1024 × 768 true HD resolution images, with thermal measurements up to 650°C (1202°F).
EXPERT FEATURES
With programmable buttons, an agile GUI, and live image enhancements such as 1-Touch Level/Span, the T1010 has the expert features you need.
COMPACT AND EASY TO USE
The T1010 has a robust yet compact frame with a 120° rotating optical block that puts any target within comfortable viewing range.
Specifications
IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax
Thermal Sensitivity/NETD: <25 mK @ 30°C (86°F)
Field of view (FOV): 12° × 9°
Digital Camera: Field of view adapts to the infrared lens
Image Modes: Thermal, thermal MSX, digital camera
Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Storage Media: Removable media SD or SDHC card. Class 10 or better recommended
IMAGING & OPTICAL
4.3” Display: 800 × 480 pixels
Auto orientation: Automatic landscape or portrait
Automatic Image: Adjustment Standard or histogram based on the image content
Built-in Digital Camera: 5 Mpixel with LED light
Camera size excl lens (L x W x H): 167.2 mm × 204.5 mm × 180.4 mm (6.6 in. × 8.0 in. × 7.1 in.)
Camera software update: Using USB cable or SD card
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Pitch: 17 µm
Detector Type: Focal plane array (FPA), uncooled microbolometer
Digital Camera: Field of view adapts to the infrared lens
Digital image enhancement: Adaptive digital noise reduction
Digital Zoom: 1–8× continuous
Display Type: Capacitive touchscreen
Field of view (FOV): 12° × 9°
f-number: 1.2
Focal Length: 83.4 mm (3.28 in)
Focus: One shot or manual
Frame Rate [Full Window]: 30 Hz
Gallery: Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera
Image Description: No
Image Frequency: 30 Hz
Image Modes: Thermal, thermal MSX, digital camera
Infrared Image: Full color infrared image
IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax
Laser: Activated by a dedicated button
Laser Alignment: Position is automatically displayed on the infrared image
Lens Identification: Automatic
Manual Image Adjustment: Linear based, possible to adjust level/span/max./min.
Minimum IR focus distance: 1.3 m (4.26 ft)
Minimum IR–visual alignment distance: 1.3 m (4.26 ft)
MSX Resolution: 1024 × 768 pixels
Multi Spectral Dynamic Imaging (MSX): Thermal image with enhanced detail presentation
Non-radiometric IR video recording: H.264 to the memory card
Non-radiometric IR video streaming: H.264 video using USB
Optional Lenses: 7°, 28°, 45°, and 3x close-up lenses
Picture-in-Picture: No
Sketch: No
Spatial resolution (IFOV): 0.20 mrad
Spectral Range: 7.5–14 µm
Thermal Sensitivity/NETD: <25 mK @ 30°C (86°F)
UltraMax: Yes
Video Lamp: Built-in LED light
Viewfinder: No
Visual Image: Full color visual image
Visual Video Recording: H.264 to the memory card
Visual Video Streaming: H.264 video using USB
MEASUREMENT & ANALYSIS
Area: 1 box with max./min./average
Color Alarm (Isotherm): No
Difference Temperature: Delta temperature between the measurement functions and the reference temperature
Emissivity Correction: Variable from 0.01 to 1.0 or selected from the materials list
External Optics & Windows Correction: Automatic, based on the inputs of the window transmission and temperature
Measurement Corrections: Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Measurement Function Alarm: No
Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
Object Temperature Range: -40°C to 650°C (-40°F to 1202°F)
Object temperature range Accuracy: ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures from -40°C up to 1200°C
Optics Transmission Correction: Automatic, based on signals from internal sensors
Profile: No
Reference Temperature: Yes
Reflected apparent temperature correction: Automatic, based on the input of the reflected temperature
Set-up Commands: Save options, programmable button, reset options, set-up camera, language, time & units, camera information
Spot Meter: 1
User Presets: The user can select and combine measurements from one box and one delta
USER INTERFACE
Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish
Text: No
Touch Screen: Yes
Voice: No
POWER
Battery operating time: >2.5 hours at 25°C (68°F) and typical use
Battery Type: Rechargeable Li ion battery
Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature: 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
Charging Time: 2.5 hours to 90% capacity, charging status indicated by LEDs
External Power Operation: AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power Management: Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown
ENVIRONMENTAL & CERTIFICATIONS
EMC: ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Encapsulation: IP 54 (IEC 60529)
Ergonomics: The 120° rotating optical block allows you to point the camera in multiple directions while maintaining a comfortable position
Humidity: (Operating and Storage) IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Laser Classification: Class 2
Laser Type: Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
Radio Spectrum: ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2
Safety: EN/UL/CSA/PSE 60950-1
Shock: 25 g (IEC 60068-2-29)
Storage Temperature Range: –40 to 70°C (–40 to 158°F)
Tripod Mounting: UNC ¼"-20
Vibration: 2 g (IEC 60068-2-6)
GENERAL
Box Contents: Infrared camera with lens battery (2 each), battery charger, HDMI-HDMI cable, hard transport case, lens cap, neck strap, power supply including multi-plugs, USB cable (Standard A to Micro-B), calibration certificate, FLIR Tools+ license card, user documentation on CD-ROM, printed documentation, SD card
Compass: No
GPS [compass]: No
Housing material: Magnesium
Packaging: Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Weight: 1.9 kg (4.3 lb)
