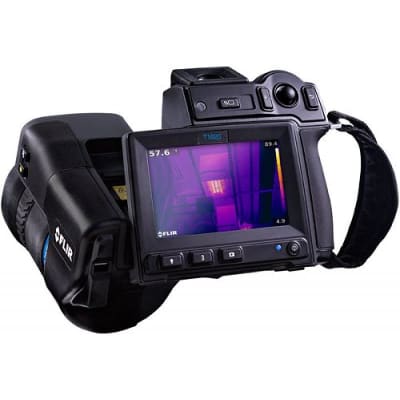

FLIR T1020-12 IR Camera 1024 x 768 Resolution 30Hz with 28 Degree Lens
FLIR T1020-12 IR Camera 1024 x 768 Resolution 30Hz with 28 Degree Lens
FLIR T1020 IR Camera 1024 x 768 Resolution/30Hz w/12 Degree Lens with FLIR Thermal Studio
Get ready for outstanding thermal imaging performance, built on 50 years of experience. With its remarkable range, up to 3.1 M resolution (UltraMax), and an agile, new user interface, FLIR's flagship T1020 is designed to streamline your workday, and make you the hero. For the sharpest images, the truest temperatures, the most flexibility—the T1020 is the ultimate result of five decades of infrared expertise. The FLIR T1020 comes with on-board Inspection Route mode so you can download and run survey plans to your camera from FLIR Thermal Studio Pro with Route Creator plugin (3-month subscription included).
Features
EXPERT FEATURES
The T1020 now offers an agile new GUI that responds like a smartphone, plus live image enhancements such as 1-Touch Level/Span.
EXCEPTIONAL MEASUREMENT PERFORMANCE
The FLIR OSX Precision HDIR optical system offers continuous autofocus and crisp resolution for accurate measurements, even from a distance.
COMPACT AND EASY TO USE
The T1020 has a 120° rotating optical block and bright, high-resolution LCD viewfinder, putting any target within comfortable viewing range.
Specifications
IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax
Thermal Sensitivity/NETD: <20 mK @ 30°C (86°F)
Field of view: (FOV) 12° × 9°
Digital Camera: Field of view adapts to the infrared lens
Image Modes: Thermal, thermal MSX, picture in picture, digital camera
Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Storage Media Removable media SD or SDHC card. Class 10 or better recommended
IMAGING & OPTICAL
4.3” Display: 800 × 480 pixels
Auto orientation: Automatic landscape or portrait
Automatic Image: Adjustment Standard or histogram based on the image content
Built-in Digital Camera: 5 Mpixel with LED light
Camera size excl lens (L x W x H): 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.)
Camera software update: Using USB cable or SD card
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Pitch: 17 µm
Detector Type: Focal plane array (FPA), uncooled microbolometer
Digital Camera: Field of view adapts to the infrared lens
Digital image: enhancement Adaptive digital noise reduction
Digital Zoom: 1–8× continuous
Display Type: Capacitive touchscreen
Field of view (FOV): 12° × 9°
f-number: 1.2
Focal Length: 83.4 mm (3.28 in)
Focus: One shot or manual
Frame Rate [Full Window]: 30 Hz
Gallery Review: thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera
Image Description: Add short note (stored in the JPEG exif tag)
Image Frequency: 30 Hz
Image Modes: Thermal, thermal MSX, picture in picture, digital camera
Infrared Image: Full color infrared image
IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax
Laser: Activated by a dedicated button
Laser Alignment: Position is automatically displayed on the infrared image
Lens Identification: Automatic
Manual Image Adjustment: Linear based, possible to adjust level/span/max./min.
Minimum IR focus distance: 1.3 m (4.26 ft)
Minimum IR–visual alignment distance: 1.3 m (4.26 ft)
MSX Resolution: 1024 × 768 pixels
Multi Spectral Dynamic Imaging (MSX): Thermal image with enhanced detail presentation
Non-radiometric IR video recording: H.264 to the memory card
Non-radiometric IR video streaming: H.264 video using Wi-Fi H.264 video using USB
Optional Lenses: 7°, 28°, 45°, and 3x close-up lenses
Picture-in-Picture: Resizable and movable infrared area on the visual image
Radiometric IR video recording: Real-time radiometric recording (RTRR) to the memory card
Radiometric IR video streaming: Real-time radiometric streaming (RTRS) via USB
Sketch: Draw on the thermal/digital image or add predefined stamps Separate PC software with extensive report generation
Spatial resolution (IFOV): 0.20 mrad
Spectral Range: 7.5–14 µm
Thermal Sensitivity/NETD: <20 mK @ 30°C (86°F)
UltraMax: Yes
Video Lamp: Built-in LED light
Viewfinder: Built-in 800 × 480 pixels
Visual Image: Full color visual image
Visual Video Recording: H.264 to the memory card
Visual Video Streaming: H.264 video using Wi-Fi H.264 video using USB
MEASUREMENT & ANALYSIS
Area: 5 + 5 areas (boxes and circles) with max./min./average
Atmospheric transmission correction: Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity
Color Alarm (Isotherm): Above/below/interval
Difference Temperature: Delta temperature between the measurement functions and the reference temperature
Emissivity Correction: Variable from 0.01 to 1.0 or selected from the materials list
External Optics & Windows Correction: Automatic, based on the inputs of the window transmission and temperature
Measurement Corrections: Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
Object Temperature Range: -40°C to 2000°C (-40°F to 3632°F)
Object temperature range Accuracy: ±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures up to 1200°C
Optics Transmission Correction: Automatic, based on signals from internal sensors
Profile: 1 line profile with max./min. temperature
Reference Temperature: Manually set using the difference temperature
Reflected apparent temperature correction: Automatic, based on the input of the reflected temperature
Set-up Commands: Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information
Spot Meter: 10
User Presets: The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta
USER INTERFACE
Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish
Text: Add table, select between predefined templates
Touch Screen: Yes
Voice: 60 seconds (via Bluetooth) stored with the image
POWER
Battery operating time: >2.5 hours at 25°C (68°F) and typical use
Battery Type Rechargeable: Li ion battery
Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature: 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
Charging Time: 2.5 hours to 90% capacity, charging status indicated by LEDs
External Power: Operation AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power Management: Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown
ENVIRONMENTAL & CERTIFICATIONS
EMC: ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Encapsulation: IP 54 (IEC 60529)
Ergonomics: The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position
Humidity (Operating and Storage): IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Laser Classification: Class 2
Laser Type: Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
Radio Spectrum: ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2
Safety: EN/UL/CSA/PSE 60950-1
Shock: 25 g (IEC 60068-2-29)
Storage Temperature Range: –40 to +70°C (–40 to 158°F)
Tripod Mounting: UNC ¼"-20
Vibration: 2 g (IEC 60068-2-6)
GENERAL
Box Contents: Infrared camera with lens Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case Large eyecup, Lens cap, Neck strap, Power supply, including multi-plugs USB cable, Standard A to Micro-B Calibration certificate, FLIR Tools+ license card, User documentation on CD-ROM Printed documentation, Bluetooth headset, SD card
Compass: Camera direction automatically added to every image
Housing material: Magnesium
Packaging: Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Weight: 2.1 kg (4.6 lb)
