3M 1001404 4D Leather Lineman Belt Black, D30

Original price $703.34 - Original price $703.34
Original price
$703.34 - $703.34
Current price $703.34

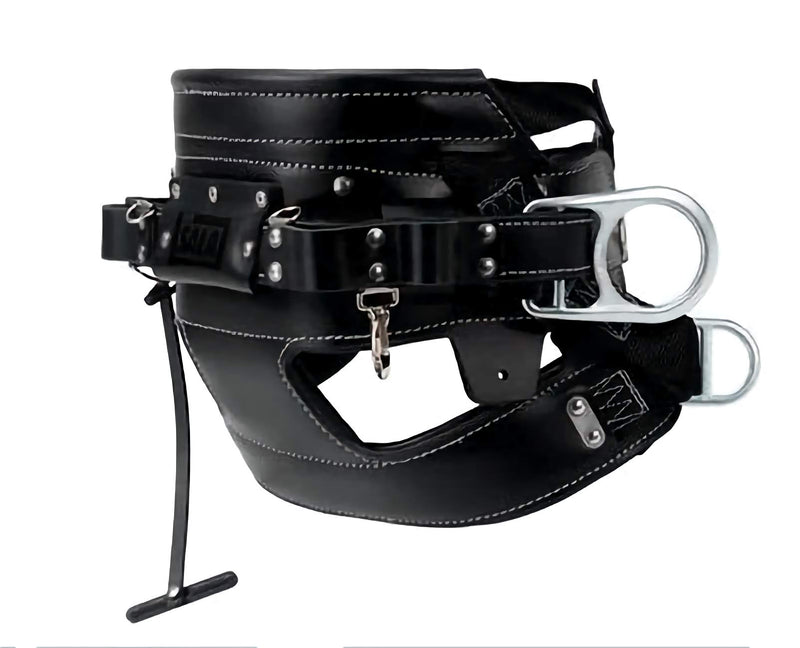

3M 1001404 4D Leather Lineman Belt Black, D30

4D lineman tongue buckle belt with top-grain leather and contoured seat pad (size D30)


  • Built-in contoured comfort and support seat
  • Unique design moves center of gravity upward
  • Rolled edges add durability and comfort at the hips
  • Tongue buckle style body belt
  • Gut strap with locking quick connect buckle
  • 2 large S-shaped full-floating D-rings at hips
  • 2 small D-rings for fall restrict device
  • Made with 100% top-grain leather from Red Wing, MN
  • Built-in tool snaps and rings
  • Integral leather tape thong
  • Metal ID plate with vinyl label, equipped with 3M™ Connected Safety ID (CSID)
  • Available in sizes D18 through D30


Belly Pad: No
Belt Type: Waist
Board/Seat Cushion: No
Buckle Material: Stainless Steel Grommet
Buckle Type: Tongue Buckle
Case Quantity: 1
Connected Safety ID Equipped: Yes
D-ring Material: Zinc Plated Steel
D-ring Placement: Side
Hip Pad: Yes
Material: Leather
Max Free Fall Allowed: 2 ft. (0.60 m)
Product Color: Black
Product Type: 4D Lineman Belt
Recommended: Industry Utilities
Size: D30
Specifications Met: ASTM F887, OSHA 1910.66, OSHA 1926.502
Type: Belt
Webbing Material: Nylon
Weight (Imperial): 6.2 lb.
Weight (Metric): 2.8 kg
Weight Capacity: 310 lbs. (141 kg)
Weight Capacity (Imperial): 310 lb.
Weight Capacity (Metric): 141 kg


3M DBI-SALA Lineman's Belt (PDF, 2.5MB)
