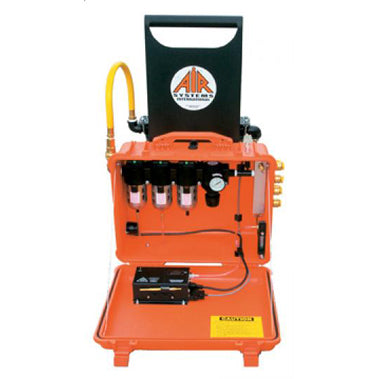

Air Systems International BA-100-8 Blast-Air Cart Sandblasting

The Air Systems BA-100-8 is engineered to accommodate the demanding requirements of the coating and sandblasting industry.

Air is supplied to the Blast Air cart from plant or mobile air compressors & pre-filtered through the high capacity particulate, oil, & water separators which are located at the rugged steel cart's rear section. The pre-filters will automatically drain a large amount of water and oil discharged from the compressor to prevent them from entering the Breather Box. This process extends the Breather Box's filter life & reduces costs and maintenance downtime.

Includes an installed 100 CFM Breather Box.

Features

• Breather Box - 100 CFM - 123 CFM flow capacity
• 8 couplings
• Twin 300 cfm Cart with mounted Pre-Filters & Automatic Drains
• All filter stages include filter changes indicators

1. 1st stage filter - bulk water and particulate removal - 5.0 micron
2. 2nd stage filter - filtration of coalescing oil & ultra-fine particulate - .01 micron
3. 3rd stage filter - Charcoal removal of objectionable odors and organic vapors - .03 micron

• Auto Drains for 1st & 2nd stage - 3rd stage manual drain
• CO Monitor and Sensor comes with 2-year warranty
• In-Line CO Monitor w/ optional CO - O2 Monitor
• Electrochemical Sensor provides detection for specific gas & rapid calibration - under 2 min.
• 9 Volt Dual-battery operation - 16 to 8 V DC & - or 115 V AC
• 125PSI - Safety Relief Valve Setting
• 0 to 160 PSI Pressure Gauge
• Visual Flowmeter for verifying air flowing to monitor
• Case mount CO alarm and warning lights
• DC remote alarm jack w/ cover cap
• Max Inlet Pressure - 150psi
• Respirator couplings have a safety lock
