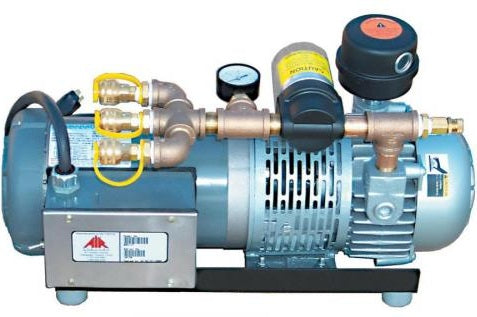

Air Systems International BAC-17EXP Explosion Proof Ambient Air Pump

The Air Systems BAC-17EXPis an explosion-proof air pump designed to be used with continuous flow respirators only.

To achieve proper operation of your ambient air pump always select constant flow respirators which are approved and designed for operation with ambient air pumps, BELOW 15psi. Be sure to specify the respirator's approved coupling size when you order a specific model of pump which matches your selected respirator hose. Compressors have to be located in clean air environments as specified in OSHA 1910.134 regulations.

Do not use an ambient air pump with a pressure-demand respirator or any Vortex cooling tubes because of low output pressures.

Features

• Accommodates two hood-style respirators or four flow masks (tight-fitting) provided that combined flow requirements are below 15cfm at 4 psi
• Max. pressure - 15psi at 12 cfm
• 15cfm output @ 4psi
• CSA approved and thermally protected explosion proof 1.5 HP Electric motor, TEFC, 230-460 Volt AC, 3-phase
• Explosion-proof on-off switch sold separately
• 0.5 to 0.7-micron inlet & compressor filters
• Pressure gauge- 0-30psi

Resources

 Air Systems BAC-17EXP Datasheet
 Air Systems BAC-17EXP Manual
