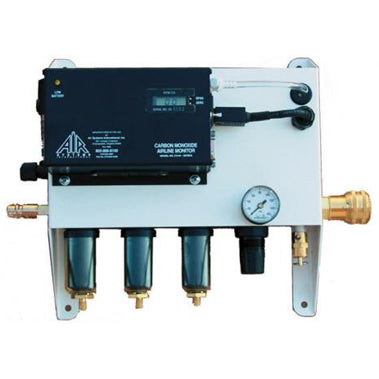

Air Systems International BB15-COPMIS Breathing Air Panel

The Air Systems BB15-COPMIS is an intrinsically safe Grade-D filtration system for use in hazardous locations. The BB15-COPMIS system filters the incoming air from your compressor to supply respirators with Grade D quality air.

The 1st stage element will filter bulk water & particulate. The 2nd stage is a coalescing filter that eliminates ultra-fine particulates, mists & atomized oils. The 3rd stage filter will remove organic vapors & odors. The filter change indicator is standard for all 3 filtration stages. The efficiency of filtration is 99.99 percent at .01 micron.

A built-in carbon monoxide (CO) monitor operates with 9 Volt DC, 115 Volt AC, or 8 to 16 VDC providing continuous detection. The audible high-intensity alarm & light alerts workers to high carbon monoxide content in the breathing air supply. A 115 Volt AC conduit box (included) provides power in & connections for remote AC-powered alarms. The filtration components come mounted on a powder-coated steel panel.

* When ordering, please specify .25 inch Hansen or Schrader style fittings

• All fixed and portable breathing air filtration systems exceed or meet Breathing Air Standards

1. OSHA 1910.134
2. Canadian Z180.1

• British BS-EN 12021:1999 Standard - RESPIRATORY PROTECTIVE DEVICES
• All units are designed to flow NIOSH max. capacity per worker
• Air Systems will provide your 1st lab-certified (at NO CHARGE) air quality test for your new filtration device

Features

• Air Systems International BB15-COPMIS Features
• 2 couplings or NPT outlet*
• Electrical conduit box - 115 VAC
• Standard indicators for filter change for all three filtration stages
• Filtration efficiency - 99.99% @ .01 micron
• Meets OSHA 1910.134
• 48 cfm flow capacity, 30 cfm with CO monitor

*contact customer service

Benefits

• High performance
• Quick and easy stages for air filtration
• Durable construction
