Air Systems International BB30-COAAPM Breathing Air Panel

Original price $3,095.00 - Original price $3,095.00
Original price
$3,095.00 - $3,095.00
Current price $3,095.00

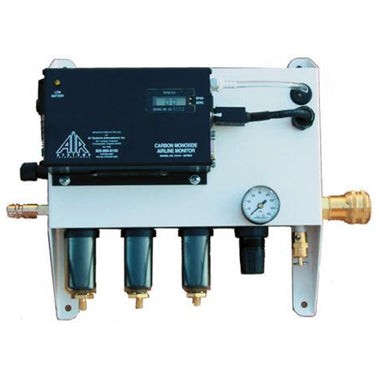

Air Systems International BB30-C0AAPM Breathing Air Panel

The Air Systems BB30-C0AAPM is a Grade-D filtration system to supply breathing air for a specific amount of workers.

The BB30-C0AAPM features the Auto Air IDLH filtration system which is is engineered to supply breathing air (Grade D) with full-automatic emergency reserve air in case of electrical failures or reduced main air source pressure while performing job duties in hazardous environments. The reserve-air activation triggers at 60 PSI and/or electrical supply loss, the system will automatically switch to your reserve air cylinder. Local & remote (optional) alarms signal personnel of primary air system failure & that the system has switched to back-up.

The 1st stage element will filter bulk water & particulate. The 2nd stage is a coalescing filter that eliminates ultra-fine particulates, mists & atomized oils. The 3rd stage filter will remove organic vapors & odors. The filter change indicator is standard for all 3 filtration stages. The efficiency of filtration is 99.99 percent at .01 micron.

A built-in carbon monoxide (CO) monitor operates with 9 Volt DC, 115 Volt AC, or 8 to 16 VDC providing continuous detection. The audible high-intensity alarm & light alerts workers to high carbon monoxide content in the breathing air supply. A 115 Volt AC conduit box (included) provides power in & connections for remote AC-powered alarms. The filtration components come mounted on a powder-coated steel panel.

* When ordering, please specify .25 inch Hansen or Schrader style fittings
  • All fixed and portable breathing air filtration systems exceed or meet Breathing Air Standards
  1. OSHA 1910.134
  2. Canadian Z180.1
  • British BS-EN 12021:1999 Standard - RESPIRATORY PROTECTIVE DEVICES
  • All units are designed to flow NIOSH max. capacity per worker
  • Air Systems will provide your 1st lab-certified (at NO CHARGE) air quality test for your new filtration device


  • 2 couplings or NPT outlet*
  • Electrical conduit box - 115 VAC
  • Standard indicators for filter change for all three filtration stages
  • Filtration efficiency - 99.99% @ .01 micron
  • Meets OSHA 1910.134
  • 48 cfm flow capacity, 30 cfm with CO monitor

*contact customer service


  • High performance
  • Quick and easy stages for air filtration
  • Durable construction


Air Systems BB30-COAAPM Datasheet
Air Systems BB30-COAAPM Remote Alarms
Air Systems BB30-COAAPM Hoses & Fittings
Air Systems BB30-COAAPM Accessories
