Air Systems International BB30-COPMIS Breathing Air Panel

Air Systems International BB30-COPMIS Breathing Air Panel

by Air Systems USA
$2,095.00 - $2,095.00
$2,095.00
$2,095.00 - $2,095.00
$2,095.00

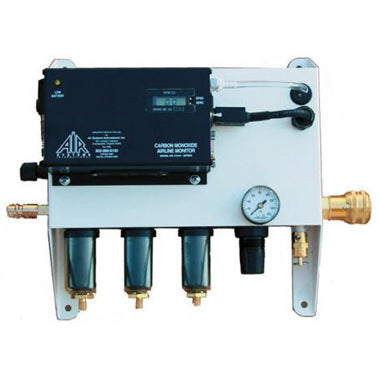

Air Systems International BB30-COPMIS Breathing Air Panel

The Air Systems BB30 COPMIS is an intrinsically safe Grade-D filtration system for use in hazardous locations.

The BB30COPMIS system filters the incoming air from your compressor to supply respirators with Grade D quality air.

The 1st stage element will filter bulk water & particulate. The 2nd stage is a coalescing filter that eliminates ultra-fine particulates, mists & atomized oils. The 3rd stage filter will remove organic vapors & odors. The filter change indicator is standard for all 3 filtration stages. The efficiency of filtration is 99.99 percent at .01 micron.

A built-in carbon monoxide (CO) monitor operates with 9 Volt DC, 115 Volt AC, or 8 to 16 VDC providing continuous detection. The audible high-intensity alarm & light alert workers to high carbon monoxide content in the breathing air supply. A 115 Volt AC conduit box (included) provides power in & connections for remote AC-powered alarms. The filtration components come mounted on a powder-coated steel panel.

* When ordering, please specify .25 inch Hansen or Schrader style fittings

All fixed and portable breathing air filtration systems exceed or meet Breathing Air Standards

  1. OSHA 1910.134
  2. Canadian Z180.1
  • British BS-EN 12021:1999 Standard - RESPIRATORY PROTECTIVE DEVICES
  • All units are designed to flow NIOSH max. capacity per worker
  • Air Systems will provide your 1st lab-certified (at NO CHARGE) air quality test for your new filtration device

Features

  • 2 couplings or NPT outlet
  • Electrical conduit box - 115 VAC
  • Standard indicators for filter change for all three filtration stages
  • Filtration efficiency - 99.99% @ .01 micron
  • Meets OSHA 1910.134
  • 48 cfm flow capacity, 30 cfm with CO monitor
  • The Air Systems BB30-COPMIS Breathing Air Panels- 1 comes equipped with filter change indicator.

Benefits

  • High performance
  • Durable construction
  • Quick and easy stages for air filtration
  • 2 year motor and sensor warranty

Resources

Air Systems BB30COPMIS Datasheet
Air Systems BB30COPMIS Remote Alarms
Air Systems BB30COPMIS Hoses & Fittings
Air Systems BB30COPMIS Accessories
