Air Systems International BB75-COPM Breathing Air Panel

Original price $2,395.00 - Original price $2,395.00
Original price
$2,395.00
$2,395.00 - $2,395.00
Current price $2,395.00

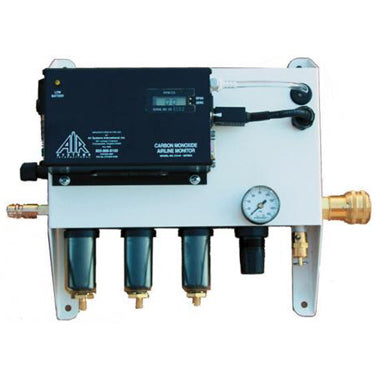

Air Systems International BB75-COPM Breathing Air Panel

The Air Systems BB75-COPM is a Grade-D filtration system to supply breathing air for a specific amount of workers. The BB75-COPM system filters the incoming air from your compressor to supply respirators with Grade D quality air.

The 1st stage element will filter bulk water & particulate. The 2nd stage is a coalescing filter that eliminates ultra-fine particulates, mists & atomized oils. The 3rd stage filter will remove organic vapors & odors. The filter change indicator is standard for all 3 filtration stages. The efficiency of filtration is 99.99 percent at .01 micron.

A built-in carbon monoxide (CO) monitor operates with 9 Volt DC, 115 Volt AC, or 8 to 16 VDC providing continuous detection. The audible high-intensity alarm & light alerts workers to high carbon monoxide content in the breathing air supply. A 115 Volt AC conduit box (included) provides power in & connections for remote AC-powered alarms. The filtration components come mounted on a powder-coated steel panel.

* When ordering, please specify .25 inch Hansen or Schrader style fittings

  • All fixed and portable breathing air filtration systems exceed or meet Breathing Air Standards
  1. OSHA 1910.134
  2. Canadian Z180.1
  • British BS-EN 12021:1999 Standard - RESPIRATORY PROTECTIVE DEVICES
  • All units are designed to flow NIOSH max. capacity per worker
  • Air Systems will provide your 1st lab-certified (at NO CHARGE) air quality test for your new filtration device

Features

  • Six couplings or NPT outlet*
  • Electrical conduit box - 115 VAC
  • Standard indicators for filter change for all three filtration stages
  • Filtration efficiency - 99.99% @ .01 micron
  • Meets OSHA 1910.134
  • 97 cfm flow capacity, 75 cfm with CO monitor

*contact customer service

Benefits

  • High performance
  • Quick and easy stages for air filtration
  • Durable construction

Resources

 Air Systems BB75-COPM Datasheet
 Air Systems BB75-COPM Remote Alarms
 Air Systems BB75-COPM Hoses & Fittings
 Air Systems BB75-COPM Accessories
