Air Systems International COMP-3EA Twin-Air Compressor

Original price $11,300.00 - Original price $11,300.00
Original price
$11,300.00
$11,300.00 - $11,300.00
Current price $11,300.00

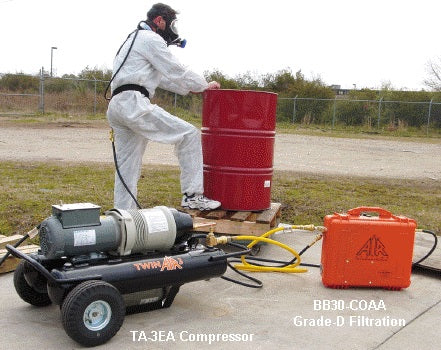

Air Systems International COMP-3EA  Twin-Air Breathing Air Compressor System

The Air Systems Twin-Air COMP-3EA Compressor system includes the BB30-COAA Auto Air Breather Box.

The included TA-3EA features double ASME receiver tanks which serve as a mounting frame for your compressor. Utilizing receiver tanks delivers air that is cooled down within ten degrees of the ambient temperature. Pneumatic tires provide easy mobility for rough terrains & the skid plate enables travel up & downstairs.

The TA-3EA cannot be used with Vortex cooling tubes or constant flow respirators

The COMP 3EA includes:

  • TA-3EA compressor
  • BB30-COAA Auto-Air Breather Box IDLH
  • Adjustable (5000 PSI) high-pressure regulator to attach to a CGA-347 or CGA-346 cylinder
  • Bottle strap
  • Cylinder protection molding
  • H-10-5 - 1/2 inch x 10 foot hose
  • H-10-3 - 3/8 inch x 10 foot hose
  • High-pressure regulator
  • BB30-COAA Breather Box

* When ordering, please specify .25 inch Hansen or Schrader style fittings
Designed to filter breathing air for those working in IDLH Environments

  • 30 CFM - 2 couplings
  • 48 CFM flow capacity

Features

  • Continuous duty rated rotary vane compressor
  • Pressure range output- 110psi
  • Electric 2 HP motor, thermally protected 1750 rpms continuous duty
  • 115/230 VAC (1-phase), 60Hz, 17.2 amps (20A service required)
  • Pneumatic tires- 10 Inch
  • Vane life- Minimum 50,000 hours
  • Skid plate
  • Compression end comes with food grade oil- USDA approved
  • Auto pressure unload - air control w/ full modulation
  • Noise level- 70 dbA at 3 feet
  • Twin-Air tank- 8 Gallon
  • 8.5 cf of air storage- 110psi - ASME coded
  • 1/2 Inch 5000 series air outlet coupling - Hansen style
  • Size: 46L x 24W x 22H

Resources

Air Systems COMP-3EA Datasheet
