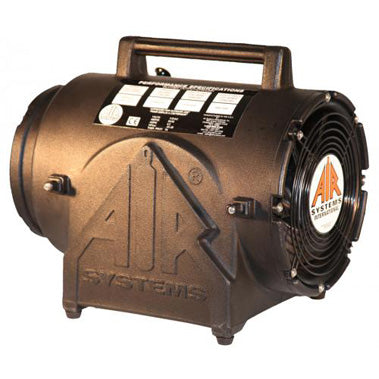

Air Systems International CVF-8X220 Explosion Proof Axial Fan

Original price $1,795.00 - Original price $1,795.00
Original price
$1,795.00
$1,795.00 - $1,795.00
Current price $1,795.00

Air Systems International CVF-8X220 Explosion Proof Axial Fan

The CVF-8X220 is a high-quality, explosion-proof 220 Volt AC axial fan with an ATEX Approved motor. The CVF-8X220 Explosion-Proof Contractor Grade Axial Fans is the latest addition to the group of ventilation products by Air Systems. The CVF 8X220 is an 8-inch explosion-proof electric ventilation fan for demanding hazardous conditions. It includes an ATEX-approved explosion-proof electrical motor.

Applications
  • Work on boilers
  • Utility and telecommunications companies
  • Electrical transformer repair
  • Maintenance
  • Tank Cleaning
  • Manhole Entry
  • Petrochemical tanks

Features

  • Fan measures 8 inches
  • Supplied with a 10ft. power cord
  • Suitable for Class I, Groups C and D Class II Groups E, F, and G Environments
  • 50/60 Hz
  • Built-in sealed on/off switch

Benefits

  • Known for its premium-quality construction offering great performance
  • Designed to tackle even the toughest job site conditions
  • Economical choice

Specifications

Motor: ATEX Approved Explosion-proof - 1/4 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Group C & D, Class II, Groups G, F, and E
Power cord: 10 feet length, w/ out plug. Must be wired by user to NEC requirements
Weight: 19 pounds

  • 974 CFM, free flow
  • 786 CFM, 15 feet duct, 1 - 90 degree bend
  • 661 CFM, 15 feet duct, 2 - 90 degree bends

Resources

Air Systems CVF-8X220 Datasheet
