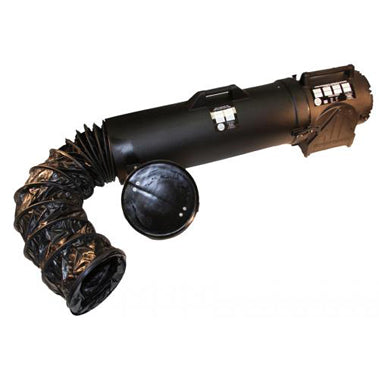

Air Systems International CVF15CANEX Explosion Proof Axial Fan Kit
Air Systems International CVF15CANEX Explosion Proof Axial Fan KitThe CVF15CANEX Ventilation Kit includes the CVF-8EXP Axial Fan with 15 feet of conductive duct. The CVF 8EXP Explosion-Proof Contractor Grade Axial Fans are the latest addition to the group of ventilation products by Air Systems. The CVF-8 EXP is an 8-inch explosion-proof electric ventilation fan for demanding hazardous conditions. The CVF 15 CANEX features a UL/CSA approved explosion-proof electrical motor, duct canister & 15 ft. length conductive duct.
- Work on boilers
- Utility and telecommunications companies
- Electrical transformer repair
- Open trenching
- Tank Cleaning
- Manhole Entry
- Cleaning tanks
- Contains CVF-8EXP fan
- 15 ft duct (conductive)
- Duct Canister (conductive)
- Without plug, user wired as per the NEC requirements
- The explosion-proof motor is approved by UL/ CSA.
- Approved for various environments- Class 1, Class II, Groups C, D, E, F, and G.
- Premium Quality offering great performance
Motor: Explosion-proof - 1/4 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Group C & D, Class II, Groups G, F, and E
Power cord: 10 feet in length, w/ out a plug. Must be wired by the user to NEC requirements
Weight: 19 pounds
- 974 CFM, free flow
- 786 CFM, 15 feet duct, 1 - 90 degree bend
- 661 CFM, 15 feet duct, 2 - 90 degree bends
