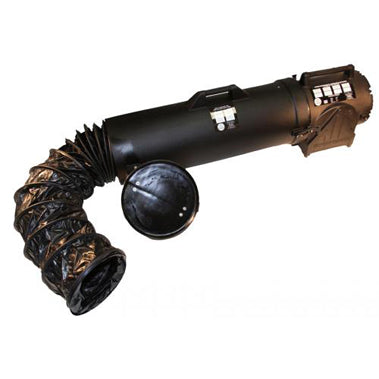

Air Systems International CVF25CANEX Explosion Proof Axial Fan Kit

The CVF25CANEX Ventilation Kit includes the CVF-8EXP Axial Fan with 25 feet of conductive duct. The CVF 8EXP Explosion-Proof Contractor Grade Axial Fans are the latest addition to the group of ventilation products by Air Systems. The CVF-8 EXP is an 8-inch explosion-proof electric ventilation fan for demanding hazardous conditions. The CVF 25 CANEX features a UL/CSA approved explosion-proof electrical motor, duct canister & 25 ft. length conductive duct.

Applications

• Work on boilers
• Utility and telecommunications companies
• Electrical transformer repair
• Open trenching
• Maintenance
• Tank Cleaning
• Manhole Entry
• Cleaning tanks

Features

• Contains CVF-8EXP fan
• 25 ft duct (conductive)
• Duct Canister (conductive)
• Without plug, user wired as per the NEC requirements

Benefits

• The explosion-proof motor is approved by UL/ CSA.
• Approved for various environments- Class 1, Class II, Groups C, D, E, F, and G.
• Premium Quality offering great performance

Specifications

Motor: Explosion-proof - 1/4 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Group C & D, Class II, Groups G, F, and E
Power cord: 10 feet in length, without a plug. Must be wired by the user to NEC requirements
Weight: 19 pounds

• 974 CFM, free flow
• 786 CFM, 15 feet duct, 1 - 90 degree bend
• 661 CFM, 15 feet duct, 2 - 90 degree bends

Resources

Air Systems CVF25CANEX Datasheet
