Air Systems International CVFEX15KIT Conductive Saddle Vent Kit

Original price $2,650.00 - Original price $2,650.00
Original price
$2,650.00
$2,650.00 - $2,650.00
Current price $2,650.00

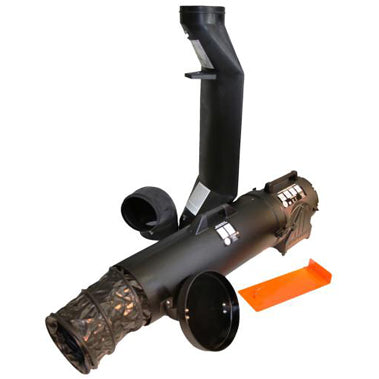

Air Systems International CVFEX15KIT Conductive Saddle Vent Kit

The Air Systems CVFEX15KIT includes the CVF-8EXP Axial Fan & Conductive Saddle Vent Ventilation Kit. The CVF 8EXP Explosion-Proof Contractor Grade Axial Fans are the latest addition to the group of ventilation products by Air Systems. The CVF-8 EXP is an 8-inch explosion-proof electric ventilation fan for demanding hazardous conditions. The CVFEX 15 KIT features a UL/CSA approved explosion-proof electrical motor, 6 ft. conductive duct canister, 15 ft. length conductive duct & the conductive Saddle Vent.

Applications
  • Work on boilers
  • Utility and telecommunications companies
  • Electrical transformer repair
  • Open trenching
  • Maintenance
  • Tank Cleaning
  • Manhole Entry
  • Cleaning tanks

Features

  • Universal mount
  • 6' duct canister (conductive)
  • 15' duct (conductive)
  • Saddle Vent (conductive)
  • 90° elbow

Specifications

Motor: Explosion-proof - 1/4 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Group C & D, Class II, Groups G, F, and E
Power cord: 10 feet length, w/ out plug. Must be wired by user to NEC requirements
Weight: 19 pounds

  • 974 CFM, free flow
  • 786 CFM, 15 feet duct, 1 - 90 degree bend
  • 661 CFM, 15 feet duct, 2 - 90 degree bends

Resources

 Air Systems CVFEX15KIT Datasheet
