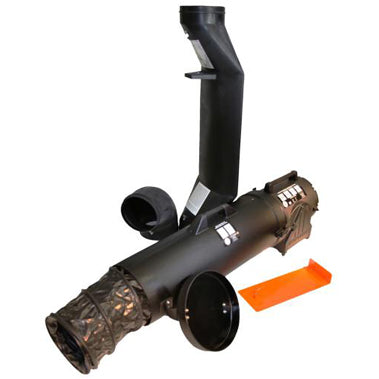

Air Systems International CVFEX25KIT Conductive Saddle Vent Kit
The Air Systems CVFEX25KIT includes the CVF-8EXP Axial Fan & Conductive Saddle Vent Ventilation Kit. The CVF 8EXP Explosion-Proof Contractor Grade Axial Fans are the latest addition to the group of ventilation products by Air Systems. The CVF-8 EXP is an 8-inch explosion-proof electric ventilation fan for demanding hazardous conditions. The CVFEX 25 KIT features a UL/CSA approved explosion-proof electrical motor, 6 ft. conductive duct canister, 25 ft. length conductive duct & the conductive Saddle Vent.Applications
- Work on boilers
- Utility and telecommunications companies
- Electrical transformer repair
- Open trenching
- Maintenance
- Tank Cleaning
- Manhole Entry
- Cleaning tanks
Features
- Universal mount
- 6' duct canister (conductive)
- 25' duct (conductive)
- Saddle Vent (conductive)
- 90° elbow
Specifications
Motor: Explosion-proof - 1/4 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Group C & D, Class II, Groups G, F, and E
Power cord: 10 feet in length, w/ out a plug. Must be wired by the user to NEC requirements
Weight: 19 pounds
- 974 CFM, free flow
- 786 CFM, 15 feet duct, 1 - 90 degree bend
- 661 CFM, 15 feet duct, 2 - 90 degree bends
