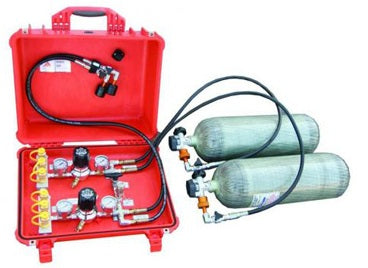

Air Systems International MACK-NFPA1 NFPA Multi Air Command Kit

The MACK NFPA units have been designed for the air handling requirements of the Fire / Rescue industry operating with NFPA Compliance. The MACK-NFPA1 air distribution system is specifically designed for confined space fire and rescue operations. The MACK NFPA1 has 2 separate manifold/regulator systems, both of which are supplied with 2 SCBA connecting whips. In case one regulator fails, the rescue operation can be executed with the stand-by regulator system.

1 or 2 SCBA cylinders may deliver air into the system. The regulator for low-pressure provides 0 to 125 psi for a 4-outlet respirator manifold. The alarm whistle for low-pressure & a 6V DC lamp illuminates the interior of the case and is included as standard equipment.

Applications

• Breathing, Rescue / Fire, Cylinder Filling Operations
• Air Distribution
• NFPA Requirements
• Hazardous Locations

Features

• Dual independent air regulators w/ 3 outlet manifolds
• Dual low-pressure alarms
• Four - 5 foot connect whips
• Confined rescue operations needs
• Two separate systems with two SCBA whips each
• Includes a regulator isolation valve
• Can use one or two air sources at a time
• CGA-347 high-pressure inlet for uninterrupted operations

Benefits

• Augments easy fire/rescue operations in confined spaces
• With the stand by regulator, you will be able to perform rescue/fire operations even if the main regulator malfunctions
