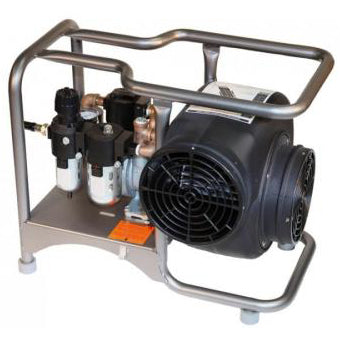

Air Systems International SVB-A8 SVB A8 Pneumatic Air Powered Blower

The Air Systems SVB-A8 features a 4 HP pneumatic air-powered motor for intrinsically safe operations. The SVB-A8 Pneumatic Blower is ideal for use in hazardous locations and operates with an air supply in the range of 10 to 100 - PSI.

Features

• Quiet operation - below 80 dbA
• CE registered
• Fan with Conductive Polyethylene housing
• Non-sparking aluminum blower wheel
• Installed static ground lug
• Tubular powder-coated steel frame and dual handles
• The flow output regulator is adjustable
• Standard in-line moisture lubricator/separator
• Innovative Air Systems muffler & oil-coalescing filter is installed at the air motor discharging point
• Intake and exhaust flange- 8 Inch
• Molded safety guards
• 1500CFM - delivery - free-air, at minimum PSI & CFM
• 1040CFM - delivery - free-air, at minimum PSI & CFM, 25 ft. duct & One - 90 degree bend
• 3000CFM - delivery - free-air, at maximum PSI & CFM
• 1725CFM - delivery - free-air, at maximum PSI & CFM, 25 ft. duct & One - 90 degree bend

Resources

Air Systems SVB-A8 Datasheet

Air Systems SVB-A8 Manual
