Air Systems International SVF-10EXCUP In-Line Explosion Proof Axial Fan
The SVF-10EXCUP In-Line Explosion Proof Axial Fan can be used standalone or can be connected to many fans for long ventilation duct lengths.
The Air Systems SVF-10EXCUP In-Line Explosion Proof Axial Fan is a 10 Inch In-line explosion-proof axial fan that features an explosion-proof electrical motor. An 8 inch or 10-inch duct can be attached to either side of the blower with the help of intake and exhaust flanges; it will help you achieve positive or negative ventilation. The body is made of lightweight steel.
Applications
- Hazardous locations
- Confined space
- Ventilation Duct
- Air Distribution Systems
Features
- Explosion-proof motor with built-in switch
- Thermal overload with automatic reset
- Steel housing is fitted with dual grounding lugs
- Durable Steel frame powder coated in red
- Base feet: rubber
- Polyethylene molded conductive inlet and exhaust flanges
- Supplied with a 10ft. power cord without plug
- 10 to 8 inch Duct Adapters included for Exhaust and Intake

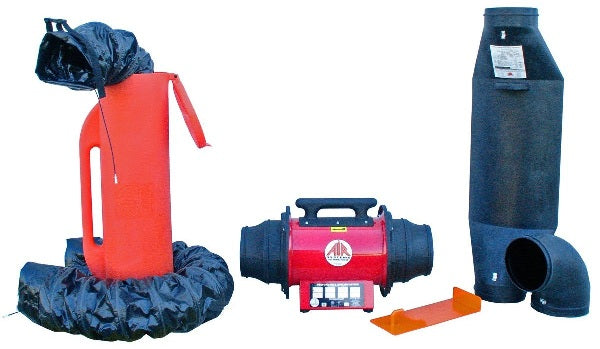

- SVF-10EXP fan and SV-CUPCND conductive saddle vent ventilation kit
Specifications
Motor: Explosion-proof - 1/3 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Division 1, Group C & D,
Class II, Groups G, F, and E
Thermal overload: Auto reset
Frame: Powder-coated red, all steel, rubber-based feet
Exhaust - inlet flanges: Conductive molded polyethylene
Power cord: 10 feet in length, w/ out a plug. Must be wired by the user to NEC requirements
Size (L x H x W): 16 x 16.75 x 12.5 inches
Weight: 32 pounds
- 72dbA at 3 feet
- 1390 CFM, free-air delivery
- 973 CFM, 25 feet duct, One 90 degree bend
