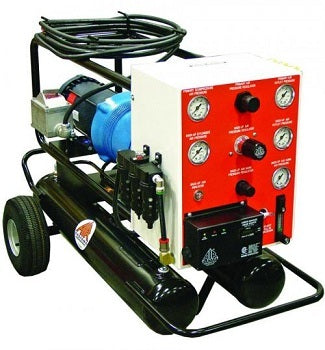

Air Systems International TA3-AXAF Auto Air Compressor

The Air Systems TA3 AXAF is an explosion-proof breathing air compressor designed for pressure demand respirators. The TA3-AXAF features a Grade D, 3 stage filtration system with an Intrinsically Safe CSA Approved monitor for carbon monoxide.

This particular compressor is not compatible with Vortex cooling tubes or constant flow type respirators.

• 110 PSI air pressure output - 3 couplings
• Explosion-proof 3 phase, 230 VAC electric motor
• On - Off Explosion proof switch
• 25-foot power cord - no plug - user wired to NEC requirement
• 3 worker operation - only for pressure demand respirators
• Fully automatic backup air feature - 4500 PSI Max. capability
• Pneumatic visual indicator & audible alarm in case of system failure
• 48 CFM flow capacity
• 3 stage Grade D filtration
• Intrinsically Safe CO monitor
• CSA approved 9 Volt DC operation - Class 1, Div. 1, Groups D and C environments
• Twin Air tank for cooled breathing air out, ASME coded
• Will hold 1 SCBA cylinder - 4500 PSI Max. back up air
• Air control steel panel w/high-pressure regulator
• 10-inch pneumatic tires
