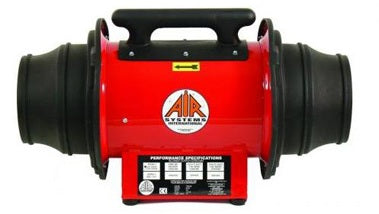

Air Systems SVF-10E In-Line Electric Steel Axial Fan 10 Inch

The Air Systems SVF 10E axial fan is designed for use as a stand-alone fan or in series for extended lengths of the confined space ventilation duct.

Intake & exhaust flanges permit either 8 or 10-inch ventilation duct to be hooked up to either side of the blower in order to achieve negative or positive ventilation.

Applications

• Use as a stand-alone fan
• Use in series to run long lengths of ventilation duct
• Use in Non-Hazardous Locations only

Features

• 1/3 HP Standard Electric Motor
• Continuous duty 1390 CFM free air
• 1-phase, 60 Hz
• 10 feet long power cord - SOOW cable w/ installed strain release
• Molded polyethylene Inlet / Exhaust flange
• 72 dBA at 3 feet
• CSA approved
• Dimensions: 16L x 16.75H x 12.5W Inches
• Weight 28 pounds

Resources

Air Systems SVF-10E Datasheet
