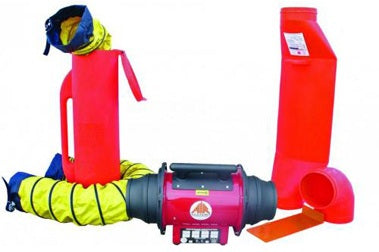

Air Systems SVF-10ECUP Saddle Vent Ventilation Kit

The Air Systems SVF 10ECUP features the Saddle Vent confined space ventilation kit and the SVF-10E Axial Fan. Intake & exhaust flanges permit either 8 or 10-inch ventilation duct to be hooked up to either side of the blower in order to achieve negative or positive ventilation.

Applications

• Use as a stand-alone fan
• Use in series to run long lengths of ventilation duct
• Use in Non-Hazardous Locations only

Features

• SVF-10E, 10” in-line Axial, electric fan
• SVH-DC25: Canister duct can hold 50 feet of duct
• SVH-15: 15 foot duct
• SVH-6: 6-foot duct
• SV-UM: Universal mount
• SV-189 Saddle Vent
• Fan frame: Powdered steel
• Fan weighs 28 pounds
• Free Air: 1390 CFM
• Flange (inlet and exhaust) : molded polyethylene
• 10 foot power cable
• 72 dBA at 3 feet
• CSA approved
• 1-phase, 60 Hz
• 1/3 HP Standard Electric Motor

Specifications

• Length - 43.5 inches
• Width - 14.5 inches
• Depth - 3.5 inches
• Top Opening - 8 inches O.D.
• Bottom Opening - 8 inches O.D.
• Construction - Polyethylene
• Temperature Rating

1. 250 degrees F Melt Temperature
2. -158 degrees F Brittleness Temperature
