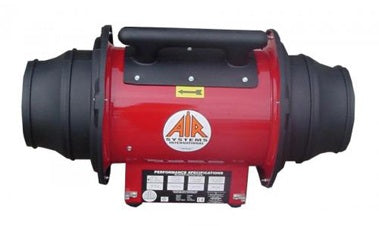

Air Systems SVF-10X220 In Line Explosion Proof Axial Fan ATEX Motor

The SVF-10X220 In-Line Axial Fan can be used standalone or can be connected to many fans for long ventilation duct lengths.
The Air Systems SVF-10EXP In-Line Axial Fan is a 10 Inch in-line axial fan that features an explosion-proof ATEX Approved electrical motor. An 8 inch or 10-inch duct can be attached to either side of the blower with the help of intake and exhaust flanges; it will help you achieve positive or negative ventilation. The body is made of lightweight steel.

Applications

• Hazardous locations
• Confined space
• Ventilation Duct
• Air Distribution Systems

Features

• ATEX Approved Explosion-proof motor with built-in switch
• Thermal overload with automatic reset
• Steel housing is fitted with dual grounding lugs
• Durable Steel frame powder coated in red
• Base feet: rubber
• Polyethylene molded conductive inlet and exhaust flanges
• Supplied with a 10ft. power cord without plug
• 10 to 8-inch Duct Adapters included for Exhaust and Intake

Specifications

Motor: ATEX Approved Explosion-proof - 1/3 HP, 115 Volts AC, single phase, 60 Hertz.
UL & CSA approved - Class 1, Division 1, Group C & D,
Class II, Groups G, F, and E
Thermal overload: Auto reset
Frame: powder-coated red, all steel, rubber-based feet
Exhaust - inlet flanges: Conductive molded polyethylene
Power cord: 10 feet in length, w/ out plug. Must be wired by the user to NEC requirements
Size (L x H x W): 16 x 16.75 x 12.5 inches
Weight: 32 pounds

• 72dbA at 3 feet
• 1390 CFM, free-air delivery
• 973 CFM, 25 feet duct, One 90 degree bend

Resources

Air Systems SVF-10X220 Datasheet
