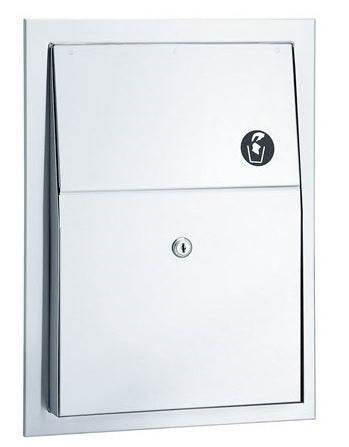

Bradley 4722-101500 Napkin Disposal, 1.5 Gal, Semi-Rec
Bradley 4722-101500 Napkin Disposal, 1.5 Gal, Semi-Rec
Bradley Napkin Disposal. 22 gauge stainless steel cabinet with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges. 22 gauge stainless steel flange with exposed surfaces in architectural satin finish. One-piece seamless construction. 1in. wide with 1/4in. return.. 22 gauge stainless steel self-closing push flap door in architectural satin finish. . 22 gauge removable waste receptacle with 1.5 gallon capacity. Waste Receptacle has one tumbler lock. Semi-Recess Mounted.
Features
Product Materials
- FLANGE: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with ¼" return.
- CABINET: 22 gauge stainless steel. All welded construction.
- PUSH FLAP DOOR: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge. Selfclosing flap door.
- WASTE CONTAINER: 22 gauge stainless steel with tumbler locks keyed like other Bradley units
Capacity
- 1.5 gal (0.2 cu. ft.)
Operation
- Waste container removable from one side with finger grip. Furnished with waxed paper liner. Box of 500 waxed paper liners are available by ordering part number P11-022.
Installation
- Verify all rough-in dimensions prior to installation. Requires partition opening 11"W x 153 /8"H x 2½"D. Secure unit to framing with mounting screws (included) at holes provided. Shim at screw points as required.
Specifications
ADA Compliant: Yes
Hinge Type: Front Hinge
Lockable: Yes
Material: Stainless Steel
Mounting: Semi-Recessed
Receptacle Insert: Stainless Steel
Series: Standard Series
Waste Capacity (L): 5.7
Waste Capacity (gal): 1.5
With Shelf: No
Guide Specification
Semi-recessed napkin disposal shall be fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Self-closing push flap door and removable stainless steel receptacle with tumbler lock.
Overall dimensions: 12¾"W x 171 /8"H x 4"D
