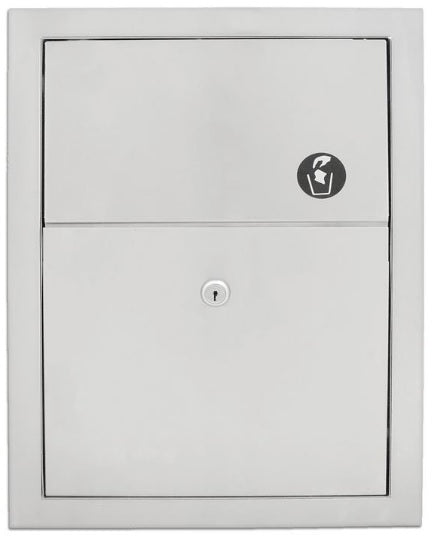

Bradley 4731-150000 Napkin Disposal, 1.5 Gal, Recessed

Bradley Napkin Disposal. 22 gauge stainless steel cabinet with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges. 22 gauge stainless steel flange with exposed surfaces in architectural satin finish. One-piece seamless construction. 1in. wide with 1/4in. return.. 22 gauge stainless steel self-closing push flap door in architectural satin finish. . 22 gauge removable waste receptacle with 1.5 gallon capacity. Waste Receptacle has one tumbler lock. Recess Mounted.

Features

Product Materials

• FLANGE: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with ¼" return.
• CABINET: heavy gauge stainless steel. All welded construction.
• PUSH FLAP DOOR: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge. Self-closing flap door.
• WASTE CONTAINER: 22 gauge stainless steel with tumbler lock keyed like other Bradley units.

Capacity

• 1.5 gal (0.2 cu. ft.)

Operation

• Waste container removable with finger grip. Furnished with waxed paper liner. Box of 500 waxed paper liners are available by ordering part number P11-022.

Installation

• Verify all rough-in dimensions prior to installation. Requires rough wall opening 113 /8"W x 153 /8"H x 4"D. Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required.

Specifications

ADA Compliant: Yes
Hinge Type: Front Hinge
Lockable: Yes
Material: Stainless Steel
Mounting: Recessed
Receptacle Insert: Stainless Steel
Series: Standard Series
Waste Capacity (L): 5.7
Waste Capacity (gal): 1.5
With Shelf: No

Guide Specification
Recessed napkin disposal shall be fabricated of stainless steel with exposed surfaces in satin finish. Self-closing push flap door secured by piano hinge. Removable stainless steel receptacle with tumbler lock.
Overall dimensions: 12¾"W x 171 /8"H x 4"D
