Bradley 9569-000000 Reversible Wall Mounted Shower Seat

by Bradley
Original price $419.25 - Original price $419.25
Original price
$419.25 - $419.25
Current price $419.25

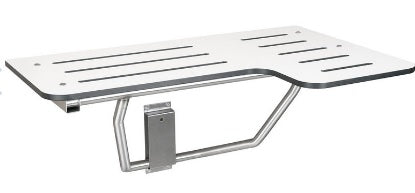

Bradley 9569-000000 Reversible Wall Mounted Shower Seat

Heavy duty, wall mounted, fold down shower seat. 34-1/2" Wide x 22" Deep. Seat is made of .5 inch thick phenolic material with white Melamine surface. Overall frame is made of 1" diameter stainless steel tubing. When anchored properly, manufacturer states that seat can support up to 250 lbs static load.


  • FRAME: satin finish stainless steel; 18 gauge 1" diameter tubing with 1½" HDPE support bars.
  • MOUNTING FLANGES: 7 gauge satin finish stainless steel with three mounting holes provided in each flange for installation.
  • LOWER SUPPORT BRACKET: 16 gauge satin finish stainless steel.
  • SEAT: ½" thick solid phenolic. White matte finish Melamine bonded onto the phenolic for color.

All exposed edges are machined smooth to a uniform dark finish. Reversible in field to be right or left hand.

  • Operation

Hinged seat folds up and out of the way when not in use. When properly installed, seat can support up to 250 lbs. – static load.

  • Installation

Verify all rough-in dimensions prior to installation. Provide concealed backing or anchors as specified by architect before finished wall is applied. Secure to wall with mounting screws (not included) at holes provided. Locate mounting holes at appropriate height above finished floor to meet seat height requirement. Secure lower support bracket to wall at appropriate location. Seat is reversible, may be made into a right hand seat. Mounting kit available from Bradley. For more information, visit

  • Guide Specification

Reversible folding white phenolic shower seat shall be ½" thick phenolic with Melamine bonded to its phenolic core. Secured to the frame of 18 gauge, 1" diameter tubing, and 1½" HDPE support bars. Support leg contained in 16 gauge lower support bracket. Shower seat must meet or exceed ADA guidelines.

  • Overall dimensions: 34½"W x 22"D x ½" thick.


Mount: Surface mount. Folds up when not in use.
Overall Dimensions: Deployed: 34-1/2" Wide x 17" Tall x 22" Deep (See diagram below for measurements when stowed.)
Material Frame: 18 gauge stainless steel
Seat: Solid Phenolic material, Melamine bonded to top surface.
Capacity: 250 lbs. (Static)
Adjustable Height: 17" to 20"
Net Weight: 24.9 lbs.
Shipping Dimensions: 15-1/2" L x 34-1/2" W x 10" H
Shipping Weight: 25.9 lbs.
UPC/GTIN: 084241012459
Manufacturer Model No. 9569-000000
Warranty: Bradley 1 year limited warranty
