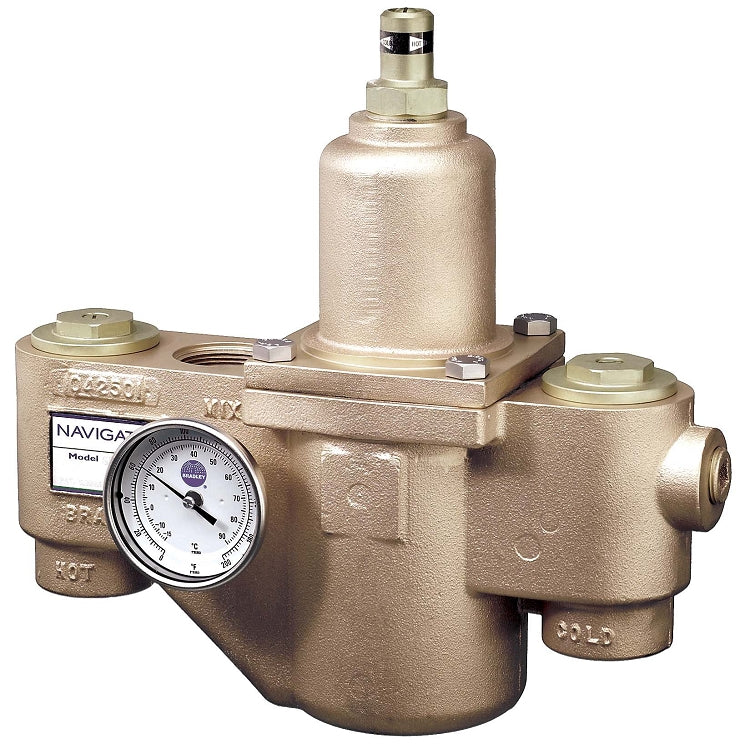

Bradley S19-2300 Thermostatic Valve Safety 82 GPM

Bradley Navigator Thermostatic Mixing Valve, designed for use in commercial applications.

Features

• Valve designed specifically to provide tepid water required for drench shower and eye wash applications.
• Includes fixed cold water bypass and anti-scald positive shut-off to protect users.
• Powerful liquid filled thermostat with 10 year warranty insures constant outlet temperature.
• Provides tepid water as required by ANSI Z358.1. 82 GPM @ 30 psi.
• Rough brass finish.
• Complements Bradley's full line of combination showers and eye wash products.
• Incoming 1 1/4" NPT connections, outlet is 1 1/2" NPT. Dial thermometer.
• Maximum operating pressure of 125 PSI.
• Minimum temperature differential of 15 degrees Fahrenheit between incoming hot water temperature and valve set point.
• Manufactures limited warranty.

Specifications

Cabinets: None
Cold Water Bypass: Yes
Gallons Per Minute (GPM): 82
Liters Per Minute (LPM): 342
