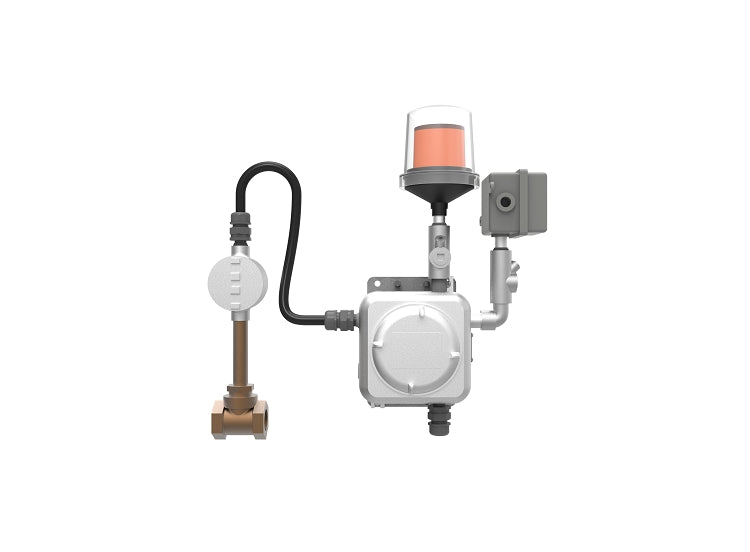

Bradley S19-324D2D Emergency Signaling System, Explosion Proof Class I Division 2
Class I, Division 2, Groups B, C and D, Explosion Proof. Wall or Fixture Mounted Emergency Signaling System. Indoor and Outdoor Installation. NEMA 4 Rated. For Use With Drench Showers or Combination Units. Double Pole Double Throw (DPDT) Flow Switch in Brass Construction, 1-1/4" NPT Supply.
Remote Location Hookup Possible via Contacts in Flow Switch and/or On Control Board. Automatic, Audible, and Visual Alarm. Minimum 2.4 GPM Flow Required. 3 and 6 Foot Cord Supplied for Connections to Flow Switch and Power Supply. Universal Voltage: 90-264 AC, 50-60 Hz. Amber Signal Light and Piezo Fast Beep Horn Sound Activate When Fixture is Used. Central Control Board Powers All Options and Runs on Safe 24 V System. UL Listed.
Features
- Class I, Division 2, Groups B,C,D, Explosion Proof
- Automatic, audible and visual system
- Double pole, double throw flow switch
- Designed to meet NEMA 4X
- Easily connected to other Emergency Fixture units
- For indoor and outdoor applications
- Universal AC voltage: 90-264 AC, 50-60 Hz
- Extra contacts in central control board and flow switch for remote location hookup
- UL Listed Industrial Control Panel(s) for US and Canada
