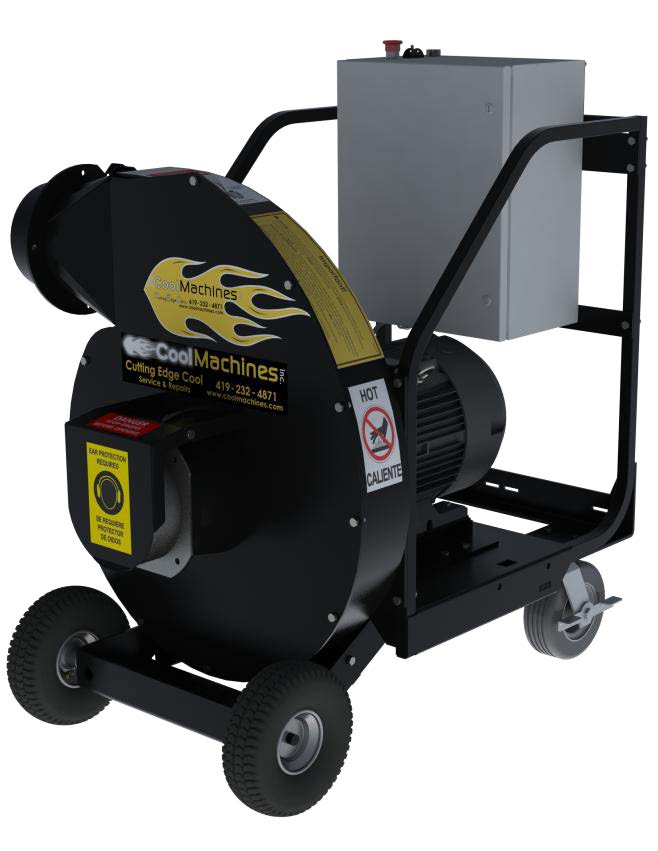

Cool Machines C2U148-204 EV-20HP Electric Insulation Vacuum 480V

Specifications

• Weight: 828 lbs. (376 kg)
• LxWxH (in): 43.25 x 33 x 48.25
• Blade (Height x Dia.): 4” x Ø22”
• Motor: 20hp Electric Motor
• Power Supply: 480V, 3Phase, 60A
• Generator: 400V, 3Phase, 30A
• Inlet: 8" (20.32 cm)
• Outlet: 8" (20.32 cm)
• Warranty: 2 year (limited)

Performance

• Vac Strength: 30" WC (0.075 bar)
• Airflow: 4000CFM (6796 m3/h)

Features

• Powder Coated: Yes
• Hourmeter/Tachometer: No
• Wheels (Run Flat): Yes (10"/25.4cm)
• A.R. Chamber: Yes ½” (12.7 mm) AR400
• Heavy Duty Chamber: No
• A.R. Blade: Yes ¼” (6.4 mm) AR500
• Input/Output Safety Switches: Yes
• Direct Drive: Yes
• Air Cooling Filter: No
• Noise Level: Low
• Type of Use: Insulation Removal
